Sibo has focused on potentiometers and sensors for 29 years.

R15S
R15S

R15S

1-turn Contactless Magnetic POT.

浏览量: Time: 2023-01-09

    Characteristics:

  • Magnetic rotary sensor (Hall effect)

  • High protection degree

  • Pocket size

  • With one couple of precision ball bearings

  • Servomount

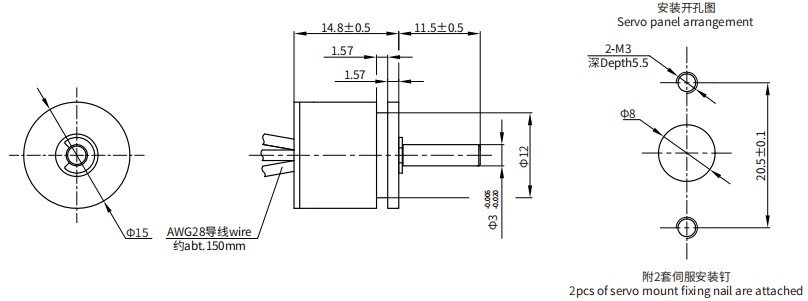

Dimension


Parameter

General Mechanical Specifications

Mechanical angle

360º(Endless)

Protection degree

IP65

Operating torque

<1mN·m

Life expectancy

100,000,000

Mass

Approx.12g

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

Environmental Specifications

Operating temperature range

-40℃~+125℃

Storage temperature range

-40℃~+125℃

ESD durability

Contact discharge ±8KV,Aerial discharge ±15KV,EN61000-4-2:2009

EMS durability

10V/m (80MHz~1GHz,1KHz80% Amplitude modulation),EN61000-4-3:2006+A1:2010

General Electrical Specifications

Standard model

R15S 0505 W360

Input voltage

5V±10%

Output signal

0~100%Vcc

Current consumption (no-load)

<16mA

Output deviation of both ends

<1%·VCC

Load resistance

>10KΩ

Effective electrical angle

360º

Independent linearity tolerance

±0.3%

Resolution

4096 (12 Bit)

Update rate

0.3ms

Insulation resistance

> 1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Special Specifications Available

Special analog signals

PWM

Other output signals

Incremental, SPI

Special shaft

Special length of shaft, special diameter or special machining on shaft (like shaft slotted、fatted etc.)
