Sibo has focused on potentiometers and sensors for 29 years.

H90JAM
H90JAM

H90JAM

Magnetic-type Joysticks

浏览量: Time: 2023-01-09

    Characteristics:

  • 3-dimensional coordinate type joystick

  • Potentiometer outside-mounted

  • Hall effect joystick

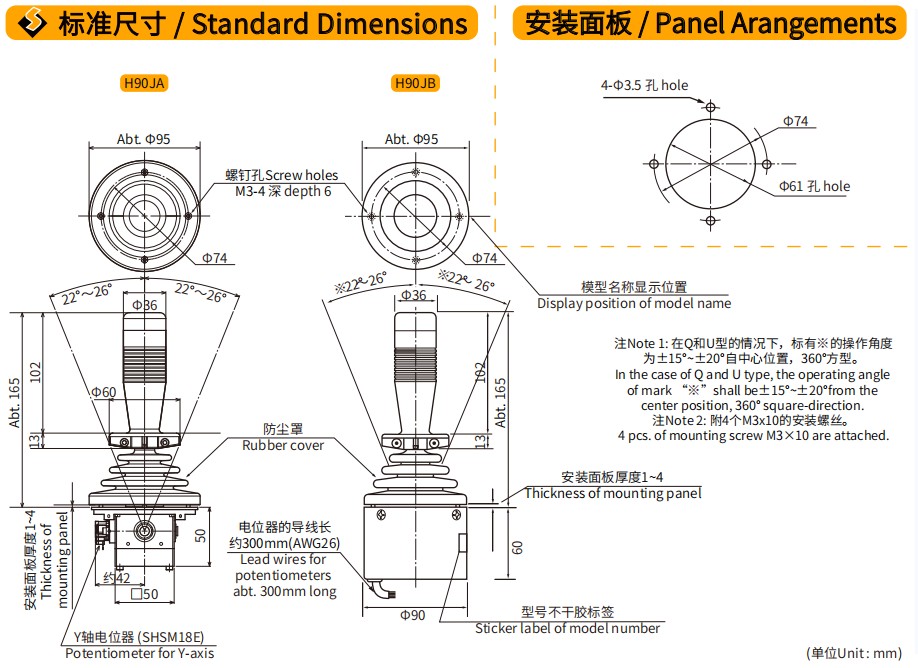

Dimension


Parameter

General Mechanical Specifications

Controlling range of operating lever

2-dimensional coordinate type: Omni-directionally approx.±22°~±26°operation from center position. 3-dimensional coordinate type: Approx.±45°~50°operation from center position of knob in addition to the operating range of 2-dimensional coordinate type.

Operating force

Standard spring return device : Automatically return to center (Omni-directional type), X and Y directions:

Operating temperature range

Approx.2 ~ 12N(200 ~ 1200gf), Z direction: Approx.20 ~ 85mN・m(200 ~ 850gf・cm)

Vibration

-20℃~+65℃

Shock

10~55HZ,98m/s2

Mechanical life expectancy

294m/s2

Mass

Approx.10,000,000 operations

General Electrical Specifications

Type

Hall effect IC type potentiometer (SHSM18E) incorporated

Applied voltage

5VDC±10%

Effective output

0.5V~4.5V

Electrical rotating angle

X and Y-axis: Approx.±22°, Z-axis: Approx.±45°

Independent linearity tolerance

±3%FS

Load resistance

>10KΩ

Resolution

Infinitesimal

Dielectric strength

1 minute at 250V.A.C.

Insulation resistance

>100MΩ(250V.D.C)

EMS durability

100V/m(80MHz~1GHz 1KHz sine-wave 80%AM modulation)

ESD durability

±8KV contact ±15KV aerial discharge (Based on IEC61000-4-2)
