Sibo se ha enfocado en potenciómetros y sensores durante 29 años.

HC70FCA
HC70FCA

HC70FCA

Magnetic-type Pedals

浏览量: Tiempo: 2023-01-09

    Características:

  • Hall effect IC type

  • Single or double full redundant outputs

  • Metal case with high reliability

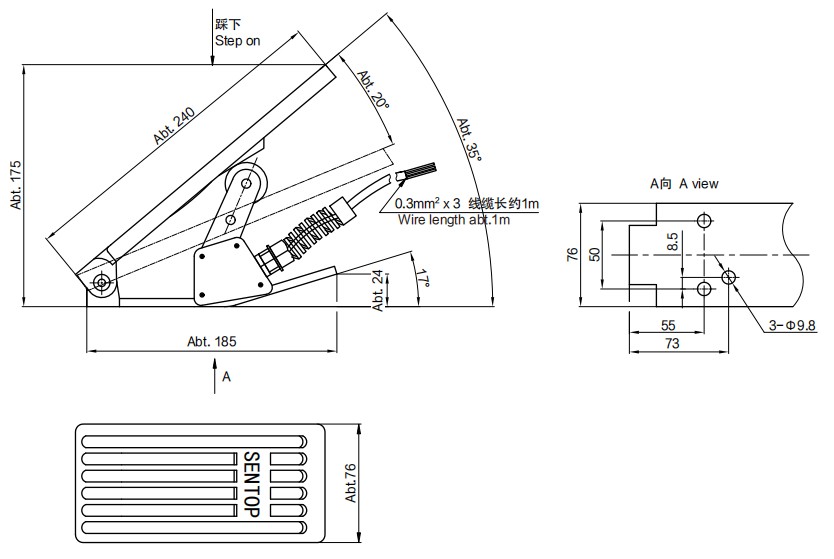

Dimensión


Parámetro

General Specifications

Operating angle

Approx.22°

Operating force

15~27N

Mechanical life expectancy

5,000,000 operations

Operating temperature

-30℃~+70℃

Storage temperature

-30℃~+70℃

Vibration

10~55Hz 98m/s²

Shock

294m/s²

Mass

Approx.1100g

Protection degree

IP67(Electrical parts)

Electrical Specifications (Hall Effect Potentiometer)

Electrical Specifications

S1,R1,R2,R3,R4

Applied voltage

5V±10%,5V±10% ,9V~30V,15V~30V,15V~30V

Output Signal

0.5V~4.5V,0~5V,0~5V,0~10V,4~20mA

Current consumption (no-load)

<16mA,<16mA,<25mA,<25mA,<35mA

Output deviation at both ends

<1%.VCC,<1%.VCC,<50mV,<50mV,<0.1mA

Load resistance

>100KΩ,>100KΩ,>100KΩ,>100KΩ,<600Ω

Effective electrical angle

Approx. 60°

Independent linearity tolerance

±2%

Resolution

4096 (12 Bit)

Update rate

0.3ms

Insulation resistance

>1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Terminal Connection Instructions

Color

Red,Black,White

Title

VCC,GND,OUT

Special Specifications Available

Other output signals

PWM

Electrical specifications

Special output characteristic, speical cable length, etc.
