WDH35B
WDH35B

WDH35B

1-turn Contactless Magnetic POT.

浏览量: Time: 2023-01-09

    Characteristics:

  • Magnetic rotary sensor

  • Shaft with front and rear extension

  • With one couple of precision ball bearings

  • Screw&Servo mount

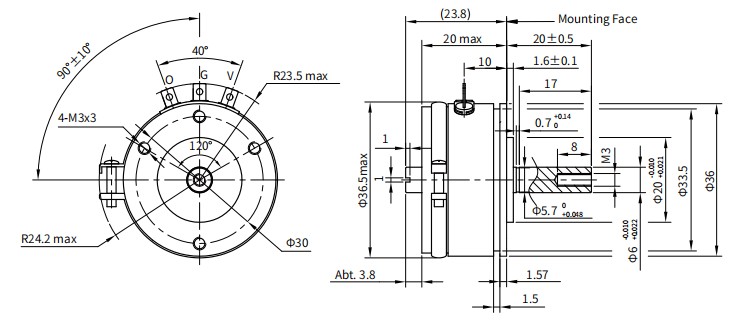

Dimension


Parameter

General Mechanical Specifications

Mechanical angle

3360º(Endless)

Protection degree

IP40

Operating torque

<1mN·m

Life expectancy

100,000,000

Mass

Approx.45g

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

Environmental Specifications

Operating temperature range

-40℃~+85℃

Storage temperature range

-40℃~+85℃

ESD durability

Contact discharge ±8KV,Aerial discharge ±15KV,EN61000-4-2:2009

EMS durability

10V/m (80MHz~1GHz,1KHz80% Amplitude modulation),EN61000-4-3:2006+A1:2010

General Electrical Specifications

Standard model

WDH35B 0505 W360(For more input voltage/output signal such as 2410、2405、2442, please check our catalog.)

Input voltage

5V±10%

Output signal

0~100%Vcc

Current consumption (no-load)

<16mA

Output deviation of both ends

<1%·VCC

Load resistance

>100KΩ

Effective electrical angle

360º

Independent linearity

±0.5%

Resolution

4096 (12 Bit)

Update rate

0.3ms

Insulation resistance

> 1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Input voltage/output signal

0505

5V±10% / 0~100%Vcc

2410

15~30V / 0~10V

2405

9~30V / 0~5V

2442

15~30V / 4~20mA

Special Specifications Available

Special analog signals

1010:10V applied, 0~10V output, 0305:3.3V applied, 0~5V output, Dual analog signal and PWM

Other output signals

RS485, RS422, CAN, USB

Special mechanical angle

With stopper (Rotating angle becomes 345°, or 270°, 180°, 90° and other angles can be customized)

Special torque

Low torque <0.5mN·m or high torque <30mN·m

Special shaft

Special length of shaft, special diameter or special machining on shaft (like shaft slotted、fatted etc.)"

Solderless wire terminal

Solderless wire terminal
