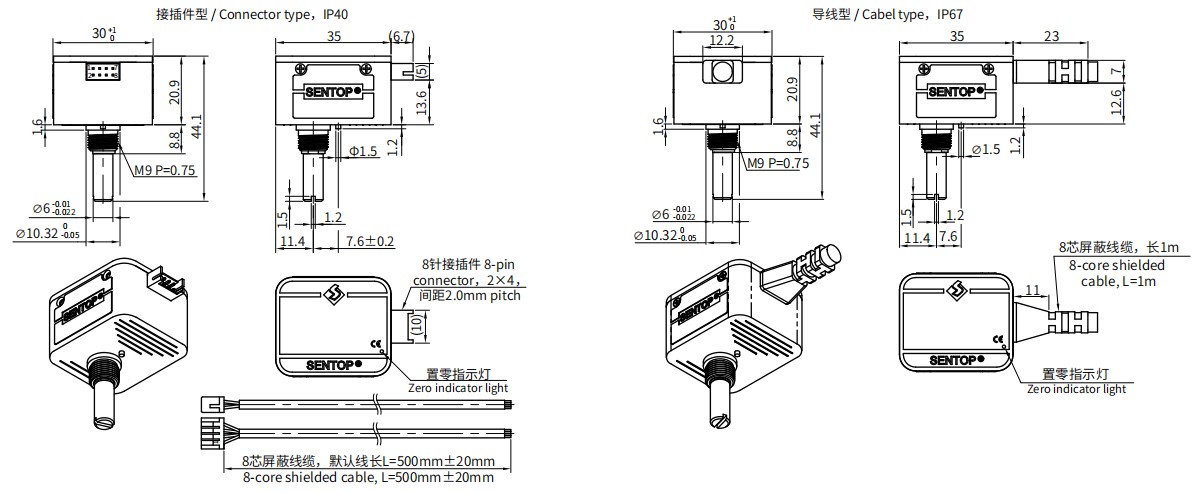

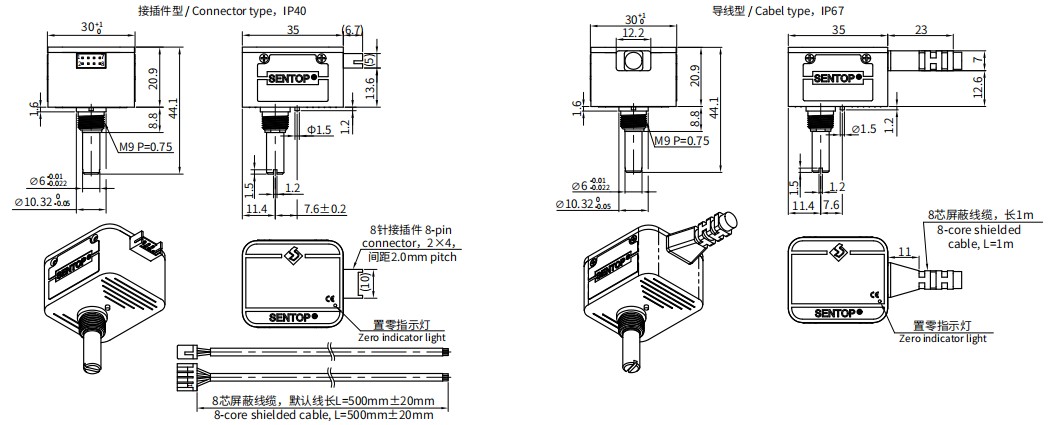

Mechanical angle

360º(Endless)

Protection degree

IP40

Operating torque

<5mN·m

Life expectancy

>50,000,000

Mass

Approx.65g

Housing material

Zinc alloy

Shaft material

Stainless steel

Connection

8pin connector 2mm 2x4P

Operating temperature range

-30℃～+85℃

Storage temperature range

-30℃～+85℃

ESD durability

Contact discharge ±8KV，Aerial discharge ±15KV，EN61000-4-2:2009

EMS durability

10V/m (80MHz～1GHz，1KHz80% Amplitude modulation)，EN61000-4-3:2006+A1:2010

Standard model

EAM30A-E3-W1230TA

Input voltage

Standard：3.3V～5VDC; optional：12V～30VDC

Current consumption (no-load)

<80mA

Single-turn resolution

4096 (12bit)

Multi-turn

Standard：30 turns; optional：60/80 turns

Independent linearity tolerance

±0.3%

Repeatability accuracy

±1Lsb(The actual accuracy is related to the installation accuracy)

Interface

SSI differential signal

Code rule

Binary

Multi-turn data bits

8bit

Single-turn angle data bits

12bit

Signal

TTL

Update signal

10μs

Insulation resistance

>1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Speical cable and connector

Available for connector with shield cable; Available for shield cable；Cable with sepcial connectors are available.

Special shaft

Special length of shaft、special diameter or special machining on shaft (like shaft slotted、fatted etc.)

Other output characteristics

If you need the product of analog 0-5V, 0-10V, 4-20mA output or the product of Bus RS485, CAN signal output, please refer to our contactless potentiometer R30M and encoder EBM30A.
