Magnetic encoders
Absolute multi-turn:30/60/80 turns
Up to 14bit for single-turn
Output signal：RS485, CAN
Zero point setting at any position
Mechanical angle
360º(Endless)
Protection degree
IP40
Operating torque
Standard: <5mN·m；Optional：5mN·m~10mN·m
Life expectancy
>50,000,000
Mass
Approx.65g
Housing material
Zinc alloy
Shaft material
Stainless steel

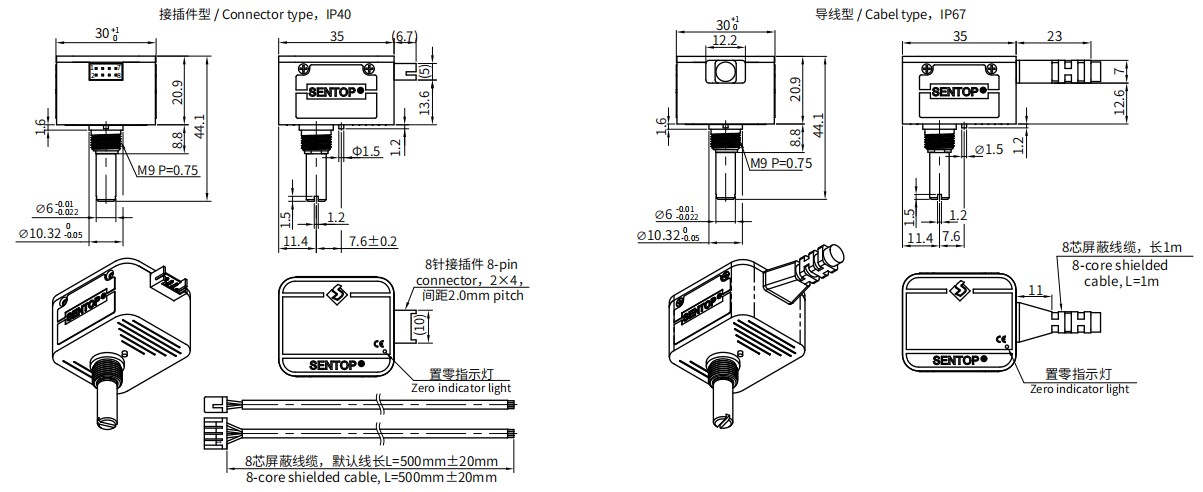

Connection
8pin connector 2mm 2x4P
Operating temperature range
-30℃～+85℃
Storage temperature range
-30℃～+85℃
ESD durability
Contact discharge ±8KV，Aerial discharge ±15KV，EN61000-4-2:2009
EMS durability
10V/m (80MHz～1GHz，1KHz80% Amplitude modulation)，EN61000-4-3:2006+A1:2010
Standard model
EBM30A-E3-W1230T485
Input voltage
Standard：3.3V～5VDC; Optional：12V～30VDC"
Current consumption (no-load)
<80mA
Single-turn resolution
4096 (12bit)
Multi-turn
Standard：30 Turns; Optional：60/80 Turns
Independent linearity tolerance
±0.3%
Repeatability accuracy
±1Lsb (The actual accuracy is related to the installation accuracy)
Protocol
Modbus RTU slave
Multi-turn data bits
8bit
Single-turn angle data bits
12bit
Baud rate
Default 9600 bps, N, 8,1, settable
Address
Default 1, settable
Update signal
10μs
Insulation resistance
>1000MΩ (500V.D.C)
Dielectric strength
1 min (500V.A.C)
Standard model
EBM30A-E3-W1230TCAN
Input voltage
Standard：3.3V～5VDC; Optional：12V～30VDC"
Current consumption (no-load)
<80mA
Single-turn resolution
Standard：4096 (12bit)
Multi-turn
Optional：16384 (14bit);
Independent linearity tolerance
Standard：30 Turns; Optional：60/80 Turns
Repeatability accuracy
±0.3%
Protocol
±1Lsb (The actual accuracy is related to the installation accuracy)
Communication distance
CANopen
Insulation resistance
Min. 50ms
Dielectric strength
>1000MΩ (500V.D.C)
Speical cable and connector
Available for connector with shield cable; Available for shield cable；Cable with sepcial connectors are available.
Special shaft
Special length of shaft、special diameter or special machining on shaft (like shaft slotted、fatted etc.)
Other output characteristics
If you need the product of analog 0-5V, 0-10V, 4-20mA output and the product of absolute SSI output, please refer to our contactless potentiometer R30M and encoder EAM30A.
