Sibo has focused on potentiometers and sensors for 29 years.

XL50SI
XL50SI

XL50SI

Draw Wire Sensor

浏览量: Time: 2023-01-29

    Characteristics:

  • Draw-wire position sensor

  • Economy version

  • Measuring range:100~1500mm

  • Output signal:A、B、Z differential

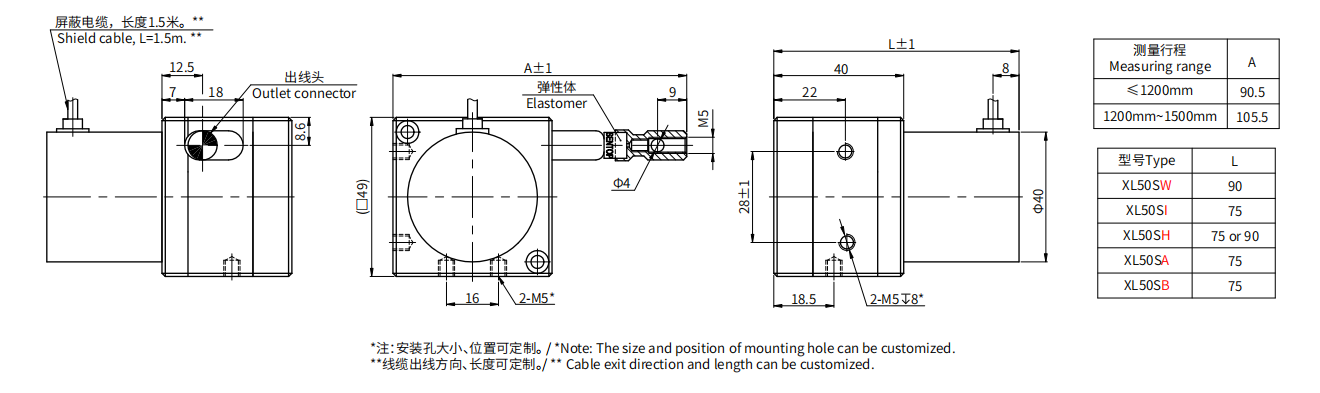

Dimension


Parameter

General Mechanical Specifications

Measure range

Max. 1500mm

Protection degree

IP54(electrical parts)

Force

2N~5.5N

Mechanical Life expectancy

2,000,000

Mass

Approx.350g

Housing material

Anodized aluminium alloy

Draw wire

0.6mm coated polyamid stainless steel

Max. reciprocating speed

300mm/s

The length of the cable

1.5m

Environmental Specifications

Operating temperature range

-30℃~+85℃

Storage temperature range

-30℃~+85℃

Shock

10G, 10Hz~1.5kHz

Vibration

50G, 10ms

General Electrical Specifications

Applied voltage

4.75V-30V

Output type

Push-pull (Available for speical output type as Open Collector or line driver)

Linearity tolerance

0.3%FS

Repeatability accuracy

0.03%

Encoder resolution

Single turn 100mm(Customized within 4096P/R)

Output signal

A、B、Z differential

Output high level

≥2.8V

Output low level

≤0.5V

Special Specifications Available

Special specifications

Available for multi-segment output, special cables, high protection degree, etc.
