Magnetic encoders
Any PPR up to 4096 available
High protection degree
Small size（Housing dia.Φ18mm）

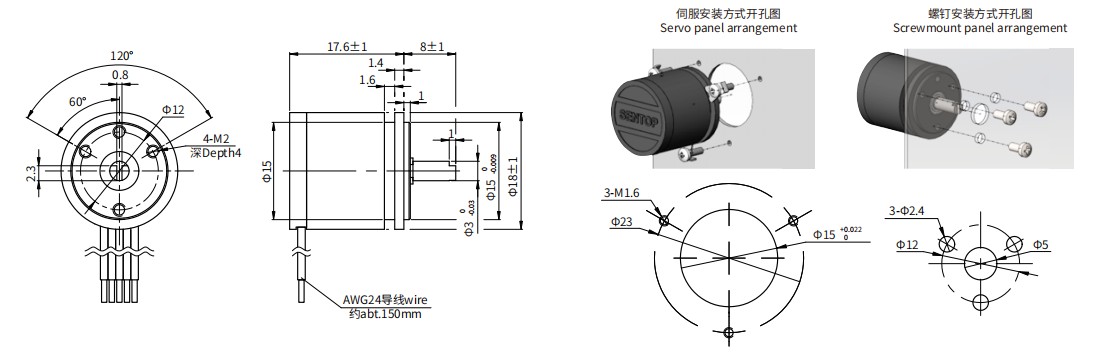

Screwmount
Protection degree
IP67
Operating torque
<1mN·m
Max.speed
6000 rpm
Life expectancy
100,000,000
Mass
Approx.20g
Housing material
Anodized aluminium alloy
Shaft material
Stainless steel
Operating temperature range
-40℃～+125℃
Storage temperature range
-40℃～+125℃
Standard model
EI18A-C5-W4096-P
Applied voltage
3.3V-5V
Output high level
>3V
Output low level
<0.25V
Output form
Push-pull output
Number of output pulse
4096 ppr
Output propagation delay
<2μs
Current consumption (no-load)
<20mA
Insulation resistance
>1000MΩ (500V.D.C)
Dielectric strength
1 min (500V.A.C)
Special shaft
Special length of shaft、special diameter or special machining on shaft (like shaft slotted、fatted etc.)
