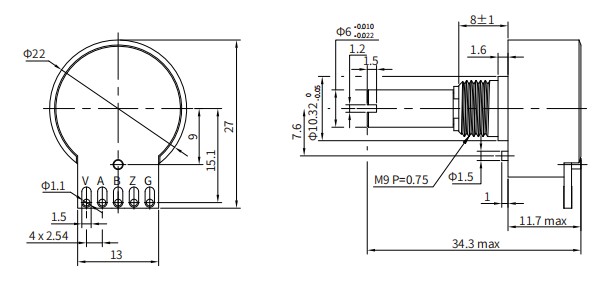

Magnetic encoders
Any PPR up to 4096 available
Solder pads
Low cost
Small size （Housing dia.Φ22mm）
Bushing mount
Protection degree
IP40
Operating torque
≤5mN·m
Max.speed
1500rpm
Life expectancy
50,000,000
Mass
Approx.12g
Housing material
Plastic
Shaft material
Stainless steel
Operating temperature range
-30℃～+85℃
Storage temperature range
-30℃～+85℃
Standard model
EI22A-E9-W4096-P
Applied voltage
3.3V-5V
Output high level
2.9-5V
Output low level
≤0.5V
Output form
Push-pull output
Number of output pulse
4096 ppr，Max 16384
Output propagation delay
≤10μs
Current consumption (no-load)
≤30mA
Insulation resistance
≥1000MΩ (500V.D.C)
Dielectric strength
1 min (500V.A.C)
Special shaft
Special length of shaft、special diameter or special machining on shaft (like shaft slotted、flatted etc.)
With connectors
With connectors
