Mechanical angle

360º (Endless)

Protection degree

IP67 (Electrical parts)

Max.speed

30000rpm

Life expectancy

>100,000,000

Mass

Rotor approx.4g，stator approx.19g

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

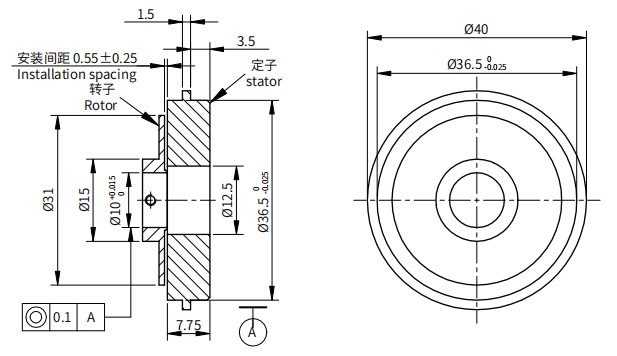

Shaft diameter

φ12 Max

Mounting gap

0.55±0.25mm

Allowable mounting eccentricity

±0.1mm

Operating temperature range

-40℃～+125℃

Storage temperature range

-55℃～+125℃

Vibration

100m/s², 10Hz~2000Hz (EN 60068-2-6)

Shock

500m/s², 13ms (EN 60068-2-27)

ESD durability

Contact discharge ±8KV，Aerial discharge ±15KV，EN61000-4-2:2009

EMS durability

100V/m (80MHz～1GHz，1KHz80% Amplitude modulation)， EN61000-4-3:2006+A1:2010

Standard model

IBS36-2-S5-W12485

Applied voltage

9~30V

Current consumption (no-load)

<80mA

Effective electrical angle

360º

Independent linearity tolerance

±0.2%

Resolution

4096 (12Bit)

Output port

RS485

Output signal

Modbus RTU slave

Baud rate

1200~115200bps settable，default 9600bps

Address

1~200 settable，default 1

Start time

5ms

Update signal

1ms

Communication interval

＞20ms

Insulation resistance

> 1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Customized protocol

Customized protocol according to customers' requirements
