Mechanical angle

360º (Endless)

Protection degree

IP67 (Electrical parts)

Life expectancy

>100,000,000

Mass

Rotor approx.4g，stator approx.19g

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

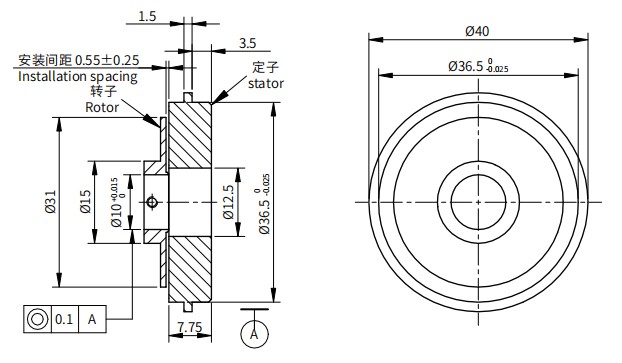

Shaft diameter

φ12 Max

Mounting gap

0.55±0.25mm

Allowable mounting eccentricity

±0.1mm

Operating temperature range

-40℃～+125℃

Storage temperature range

-55℃～+125℃

Vibration

100m/s², 10Hz~2000Hz (EN 60068-2-6)

Shock

500m/s², 13ms (EN 60068-2-27)

ESD durability

Contact discharge ±8KV，Aerial discharge ±15KV，EN61000-4-2:2009

EMS durability

100V/m (80MHz～1GHz，1KHz80% Amplitude modulation)， EN61000-4-3:2006+A1:2010

Standard model

II36-2-S5-W4096P

Applied voltage

5V DC±10%

Output form

Push-pull output

Number of output pulse

4096 ppr (500、512、1000、1024、2000、2048、4000 ppr available)

Start time

5ms

Output propagation delay

4~6μs

Current consumption

<20mA

Output level

TTL

Insulation resistance

> 1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Special Output

SSI signal
