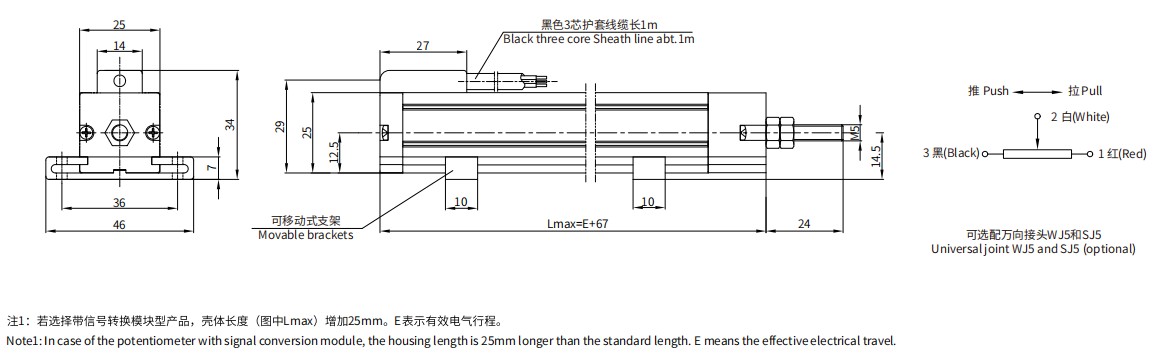

Mechanical stroke

E+6mm±0.5mm

Protection degree

IP40

Operating force

≤2.5N

Life expectancy

20,000,000

Speed (m/s)

Max 1m/s

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

Wiper material

Precious metal multi-finger wiper

Operating temperature range

-55℃～+125℃

Storage temperature range

-55℃～+125℃

Shock

50G,11ms, Half sine

Vibration

15G,10～2000Hz

Theoretical electrical stroke

10mm; 15mm; 25mm~300mm (increase every 25mm)

Actual electrical stroke

T=E±1.5mm

Standard resistance

1K,2K,5K,10K

Resistance tolerance

Standard±15%; Precision±10%

Independent linearity tolerance

Standard±0.5%; Precision±0.1%; S-Precision±0.05%

Max.power rating

0.02W/cm(70℃), 0W(125℃)

Wiper current

μA~1mA(Max.2mA))

Repeatability of tolerance

≤0.01%

Load resistance

≥1000xRt

Insulation resistance

≥1000MΩ(500V.D.C.)

Dielectric strength

750V.A.C RMS 50Hz

Electrical stroke

Same as potentiometer type

Rated input voltage

15～30V

Signal conversion module type

Current type I1, Voltage type V1, Voltage type V2

Output signal type

4~20mA（I1）、0~5V（V1）、0~10V（V2）

Load resistance

0~350Ω（I1）、≥5KΩ（V1、V2）

With spring return device

The following strokes can realize the spring return incorporated: 25mm, 50mm, 75mm, 100mm, 125mm, 150mm；The following strokes can realize the spring return outside-mounted: 10mm (including 10mm)～275mm.

Special specifications

Special electrical travel, Universal Joint WJ5,SJ5.
