CL40(Long stroke)
CL40(Long stroke)

CL40(Long stroke)

Linear Conductive Plastic POT.

浏览量: Time: 2023-01-29

    Characteristics:

  • Conductive plastic

  • With connector

  • Rodless design

  • With long measuring range 75mm~1000mm

  • Optional voltage/current signal conversion module

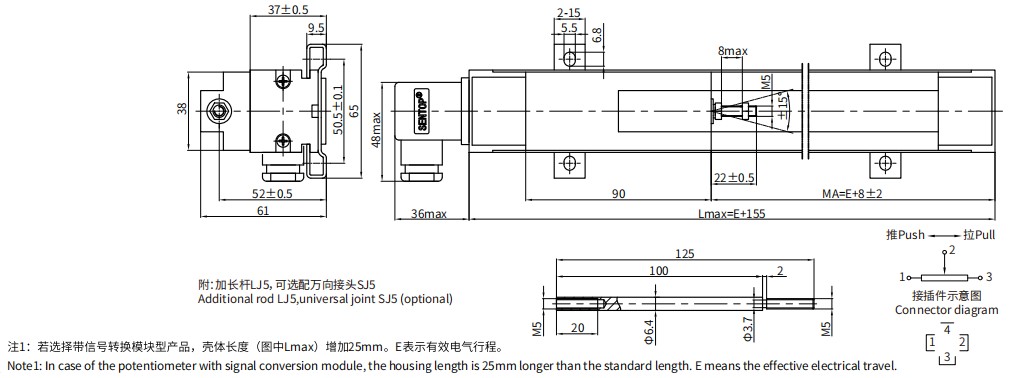

Dimension


Parameter

General Mechanical Specifications

Mechanical stroke

E+8mm±2mm

Protection degree

IP40

Operating force

≤2.5N

Life expectancy

20,000,000

Speed (m/s)

Max 1m/s

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

Wiper material

Precious metal multi-finger wiper

Environmental Specifications

Operating temperature range

-55℃~+125℃

Storage temperature range

-55℃~+125℃

Shock

50G,11ms,Half sine

Vibration

15G,10~2000Hz

General Electrical Specifications

Theoretical electrical stroke

75mm-400mm(increase every 25mm); 400mm-1000mm(每50mm递增 increase every 50mm);

Actual electrical stroke

T=E±2mm

Standard resistance

1K,2K,5K,10K

Resistance tolerance

±20%

Independent linearity tolerance

Standard±0.1%; Precision ±0.05%

Max.power rating

0.04W/cm(70℃) 0W(125℃)

Wiper current

μA~1mA(Max.2mA))

Repeatability of tolerance

≤0.01%

Load resistance

≥1000xRt

Insulation resistance

≥1000MΩ(500V.D.C.)

Dielectric strength

1000V RMS 50Hz

Signal Conversion Module

Electrical stroke

Same as potentiometer type

Rated input voltage

15~30V

Signal conversion module type

Current type I1、Voltage type V1、Voltage type V2

Output signal type

4~20mA(I1)、0~5V(V1)、0~10V(V2)

Load resistance

0~350Ω(I1)、≥5KΩ(V1、V2)

Special Specifications Available

Special specifications

Special electrical travel, With inside/outside spring return device, Universal Joint WJ5,SJ5.
