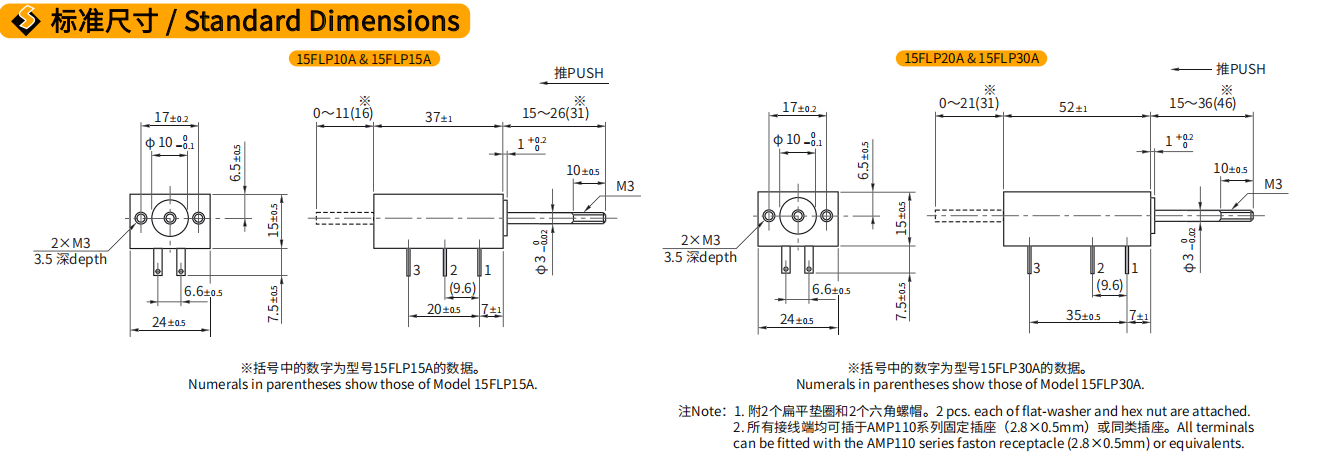

Model No.

15FLP10A；15FLP15A；15FLP20A；15FLP30A

Mechanical stroke (MS)

10 mm；15 mm；20 mm；30 mm

Protection grade (IP)

IP40

Stopper strength

Approx.20N (2kgf)

Life expectancy, shaft reciprocating motions

No load at 120 c.p.m., 20,000,000 reciprocating motions, Total resistance value variation: ≤±10％ against initial value, Independent linearity tolerance: ≤150％ of specified value, Output smoothness: ≤150％ of specified value.

Friction

≤0.3N (30gf)

Mass

Approx.30g

Resistance temperature coefficient

±400p.p.m./℃

Operating temperature range

-30℃~+105℃

Temperature cycle

5 cycles under -30℃～+105℃, total resistance value variation: ≤± 10％, No mechanical damage.

Exposure at low temperature

24 hours at -30℃, Total resistance value variation: ≤±5％, No mechanical damage.

Exposure at high temperature

1,000 hours at 105℃, Total resistance value variation: ≤±10％, No mechanical damage.

Vibration

10Hz～2000Hz, 147m/s², 12 hours, Total resistance value variation: ≤±5％, No mechanical and electrical damage.

Shock

490m/s², 11ms, 18 times, Total resistance value variation: ≤±1％, No mechanical and electrical damage.

Moisture resistance

40℃, 95％RH, 120 hours, Total resistance value variation: ≤±10％, Insulation resistance: ≥10MΩ.

Model No.

15FLP10A；15FLP15A；15FLP20A；15FLP30A

Electrical stroke

10±0.5mm；15±0.5mm；20±0.5mm；30±0.5mm

Standard resistance values

500,1k,2k,5k,10k (Ω)；500,1k,2k,5k,10k (Ω)；500,1k,2k,5k,10k (Ω)；500,1k,2k,5k,10k (Ω)

Total resistance tolerance

±10％ (K)

Independent linearity tolerance

±2.0%；±1.0% ；±1.0％ ；±1.0％

Resolution

±1.0%；±0.5% ； ±0.5％ ；±0.5％

Output smoothness

Essentially infinite

Contact resistance variation

≤ against input voltage 0.1%

Power rating

≤2% C.R.V.

Insulation resistance

0.2W；0.3W；0.4W；0.5W

Dielectric strength

≥1000MΩ (1000V.D.C.)

With spring return device

Spring return device incorporated, friction is approx. 3N (300gf)

Special shaft

Special machining on the shaft

Speical protection grade (IP)

IP54（Simple sealed type）
