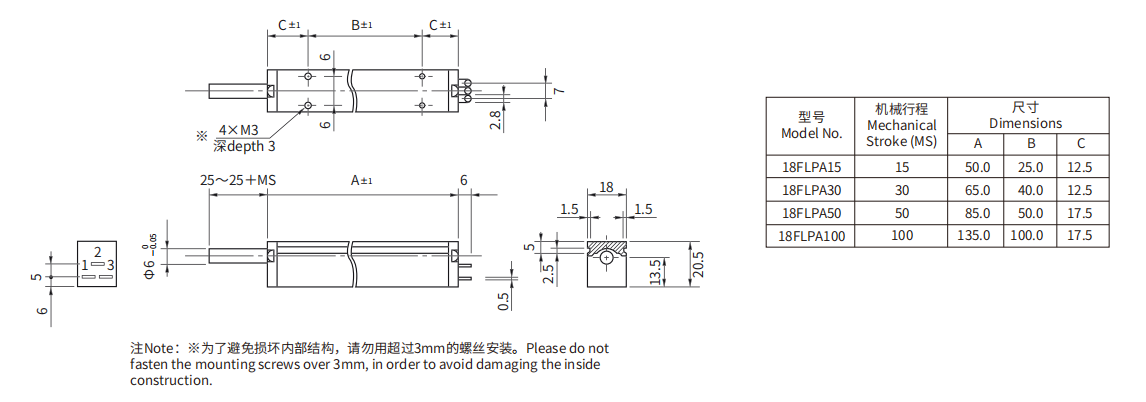

Model No.

18FLPA15；18FLPA30；18FLPA50；18FLPA100

Mechanical stroke (MS)

15 mm；30 mm；50 mm；100 mm

Protection grade (IP)

IP40

Stopper strength

Approx.90N (9kgf)

Life expectancy, shaft reciprocating motions

No load at 120 c.p.m., 20,000,000 reciprocating motions, Total resistance value variation: ≤±10％ against initial value, Independent linearity tolerance: ≤150％ of specified value, Output smoothness: ≤150％ of specified value.

Friction

≤0.3N (30gf)；≤0.3N (30gf)；≤1.0N (100gf)；≤1.0N (100gf)

Mass

Approx.60g；Approx.70g ；Approx.100g；Approx.140g

Resistance temperature coefficient

±400p.p.m./℃

Operating temperature range

-30℃~+105℃

Temperature cycle

5 cycles under -30℃～+105℃, total resistance value variation: ≤± 10％, No mechanical damage.

Exposure at low temperature

24 hours at -30℃, Total resistance value variation: ≤±5％, No mechanical damage.

Exposure at high temperature

1,000 hours at 105℃, Total resistance value variation: ≤±10％, No mechanical damage.

Vibration

10Hz～2000Hz, 147m/s², 12 hours, Total resistance value variation: ≤±5％, No mechanical and electrical damage.

Shock

490m/s², 11ms, 18 times, Total resistance value variation: ≤±1％, No mechanical and electrical damage.

Moisture resistance

40℃, 95％RH, 120 hours, Total resistance value variation: ≤±10％, Insulation resistance: ≥10MΩ.

Model No.

18FLPA15；18FLPA30； 18FLPA50；18FLPA100 15±0.5mm；30±0.5mm；50±0.5mm；100±0.5mm

Electrical stroke

500,1k,2k,5k,10k(Ω)； 500,1k,2k,5k,10k(Ω)；500,1k,2k,5k,10k(Ω)；1k,2k,5k,10k,20k(Ω)

Standard resistance values

±10％ (K)

Total resistance tolerance

±0.7%；±0.7%；±0.4％； ±0.3％

Independent linearity tolerance

±0.5%；±0.5% ； ±0.25％；±0.2％

Resolution

Essentially infinite

Output smoothness

≤against input voltage 0.1%

Contact resistance variation

≤2% C.R.V.

Power rating

0.3W；0.6W；0.75W；1.25W

Insulation resistance

≥1000MΩ (1000V.D.C.)

Dielectric strength

1 min (1000V.A.C)

Special electrical stroke

150mm (S18FLPA150), 200mm (S18FLPA200)

With spring return device

Up to 100mm stroke, Friction is 3N (300gf). Spring return device is mounted on the outer shaft. For details, please ask us.

Special shaft

Special machining on the shaft

Speical protection grade (IP)

IP54（Sealed type, the length of "A" is extended by abt. 6mm）
