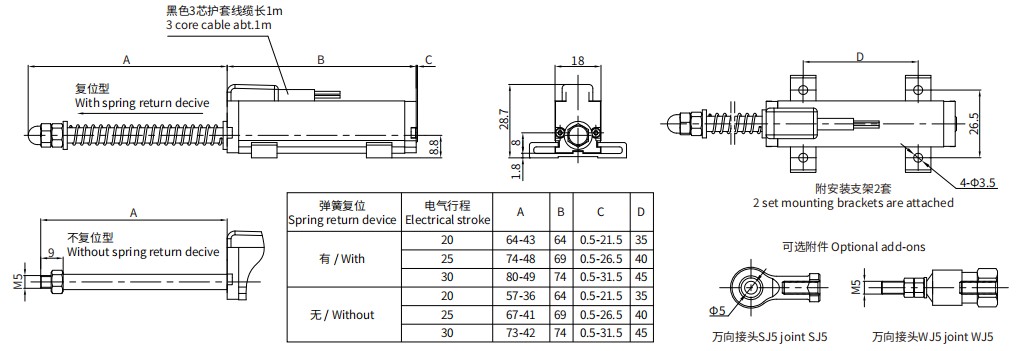

Mechanical stroke

Approx.21 mm

Mass

Approx.95g

Protection degree

IP40

Operating force (with spring return)

Approx.2N-6N

Stopper strength

Approx.9kgf

Life expectancy

50,000,000 、reciprocating motions

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

Operating temperature range

-30℃～+85℃

Storage temperature range

-30℃～+85℃

ESD durability

Contact discharge ±8KV，Aerial discharge ±15KV，EN61000-4-2:2009

EMS durability

10V/m (80MHz～1GHz，1KHz80% Amplitude modulation)，EN61000-4-3:2006+A1:2010

Standard model

HCL18-XX-R-0505（For more input voltage/output signal such as 2410、2405, please check our catalog.）

Input voltage

5V±10%

Output signal

0～100%Vcc

Current consumption (no-load)

<16mA

Output deviation at both ends

<1%·VCC

Load resistance

>100KΩ

Electrical stroke

20±0.5mm / 25±0.5mm / 30±0.5mm

Independent linearity tolerance

±0.5%

Resolution

4096 (12 Bit)

Update rate

0.3ms

Insulation resistance

> 1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

0505

5V±10% / 0～100%Vcc

2410

15～30V / 0～10V

2405

9～30V / 0～5V

Special analog signals

2442：15～30V applied, 4～20mA output, 1010：10V applied, 0～10V output, 0305：3.3V applied, 0～5V output, PWM

Special shaft

Special length of shaft, special diameter(＜6mm) or special machining on shaft

Special electrical stroke

Special electrical stroke (<30mm)

Special operating force

Special operating force
