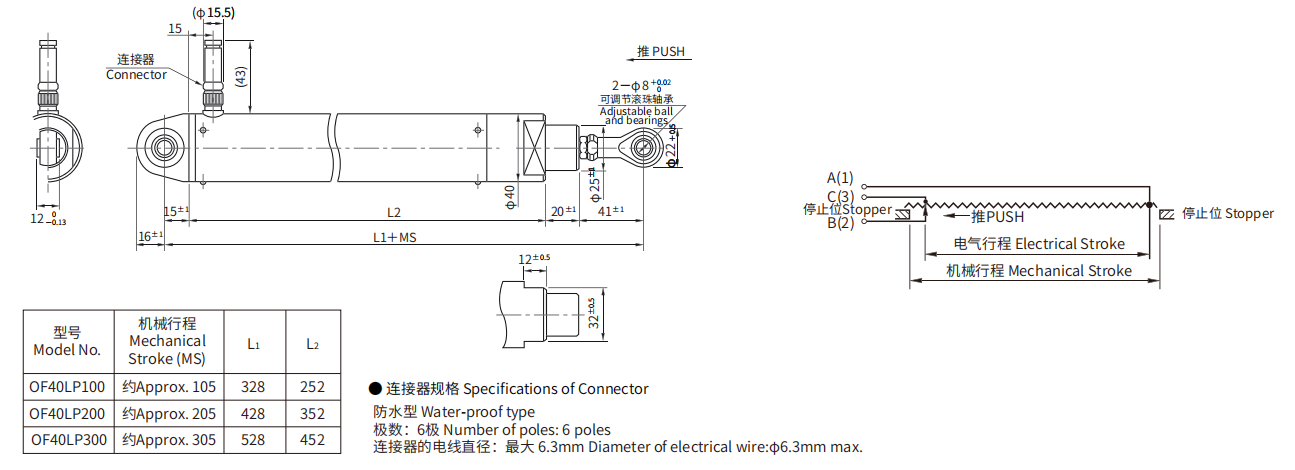

Model No.

OF40LP100, OF40LP200, OF40LP300

Mechanical stroke (MS)

Approx. 105mm, 205mm, 305mm

Protection grade (IP)

IP55

Stopper strength

Approx. 90N (9kgf)

Life expectancy

25℃, No load at 60 c.p.m., 5,000,000 reciprocating motions, Total resistance value variation: ≤±5％ against initial value, Independent linearity tolerance: ≤150％ of specified value, Noise: ≤500Ω E.N.R.

Friction

≤20N（2kgf）

Mass

Approx. 1000g, 1200g, 1500g

Resistance temperature coefficient

±20p.p.m./℃

Operating temperature range

-30℃~+60℃

Temperature cycle

5 cycles under -30℃～+60℃, total resistance value variation: ≤±5％, No mechanical damage.

Exposure at low temperature

24 hours at -30℃, Total resistance value variation: ≤±5％, No mechanical damage.

Exposure at high temperature

1,000 hours at 60℃, Total resistance value variation: ≤±5％, No mechanical damage.

Vibration

10Hz～2000Hz, 98m/s², 12 hours, Total resistance value variation: <±5％, No mechanical and electrical damage.

Shock

294m/s², 11ms, 18 times, Total resistance value variation: ≤±1％, No mechanical and electrical damage.

Moisture resistance

40℃, 95％RH, 2000hours, Total resistance value variation: ≤±10％, Insulation resistance: ≥100MΩ.

Model No.

OF40LP100, OF40LP200, OF40LP300

Standard resistance range

100~20kΩ, 100~50kΩ, 200~50kΩ

Max. practical resistance value

40kΩ, 80kΩ, 100kΩ

Resistance tolerance

Standard class: ±5% (J), Precision class: ±3% (H)

Independent linearity tolerance

Standard class: ±0.5%, ±0.5%, ±0.3%; Precision class: ±0.25%, ±0.25%, ±0.1%

Power rating

1.0W, 2.0W, 3.0W

Noise

≤100Ω E.N.R.

Electrical stroke

100±1mm, 200±1mm, 300±1mm

Insulation resistance

≥100MΩ (500V.D.C.)

Dielectric strength

1 min (900V.A.C)

Resistance value (Ω)

100；200 ；500；1k；2k；5k ；10k；20k；50k；100k

Special shaft type

Special machining on the shaft

Extra tap

Extra tap (Available up to 1 tap)

Non-oil-filled type

Non-oil-filled type

With conductive plastic resistive element

OF40FLP
