Hall effect miniature thumbstick

浏览量: Time: 2023-01-09

    Characteristics:

  • Hall effect miniature thumbstick

  • Available redundant output

  • IP67 (Electrical parts)

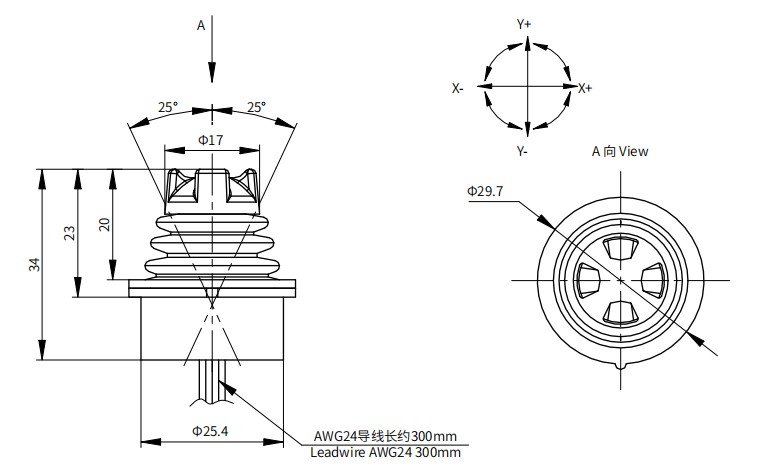

Dimension


Parameter

General Specifications

Operating angle

Approx. ±25°(From center position)

Operating force

Approx. 2.5N~3.5N

Max. operating force

200N

Mechanical life expectancy

Approx. 500,000

Operating temperature range

-20℃~+85℃

Storage temperature range

-40℃~+85℃

Mass

Approx. 20g

Protection grade

IP67 (Electrical parts)

Electrical Specifications

Input voltage

5V±10%;9~30V

Output signal

0~100% / 10~90%Vcc;0~5V / 0.5~4.5V

Current consumption (no-load)

<11mA (Each axis);<15mA (Each axis)

Load resistance

>100KΩ

Output deviation at both ends

<50mV

Independent linearity tolerance for Hall IC

±3%

Resolution

4096 (12bit)

Dielectric strength

1 min (500V.A.C.)

Insulation resistance

>1000MΩ (500V.D.C.)

EMS

10V/m (80MHz~1GHz 1KHz 80%)

Terminal Connection Instructions

Color

Red;Black;White;Yellow

Title

VCC;GND;Xout;Yout

Special Specifications Available

Special analog signals

3.3V applied, 0~5V output;Dual analog signal and PWM"

Special knob

Special knob and motifs on the knob

Other special specifications

With customer-specific connectors;With protection module
