Controlling range of operating lever

3-dimensional coordinate type, X and Y directions: Approx. ±15° from center position, Z diretions: Approx. ±30° from center position

Operating force

(Standard spring return device: Automatically return to center), X and Y directions: Approx.1.5～3N(150～300gf), (X and Y directions with rubber cover: Approx.1.5～3.5N(150～350gf)), Z direction:Approx.10～30mN～m(100～300gf.cm)

Operating temperature range

-20℃～+60℃

Vibration

10～55Hz 98m/S2

Shock

294m/S2

Mechanical life expectancy

Approx.1,000,000 operations.

Mass

Approx.50g

Applied voltage

5V.D.C.±10%

Effective output

0.5V～4.5V

Electrical rotating angle

X、Y directions： Approx. ±15°，Z direction： Approx. ±30°

Independent linearity tolerance

±3%

Load resistance

≥10KΩ

Dielectric strength

1 min (250V.A.C.)

Insulation resistance

≥100MΩ (250V.D.C.)

EMC durability

50V/m (80MHz～1GHz 1kHz sine-wave 80%AM modulation)

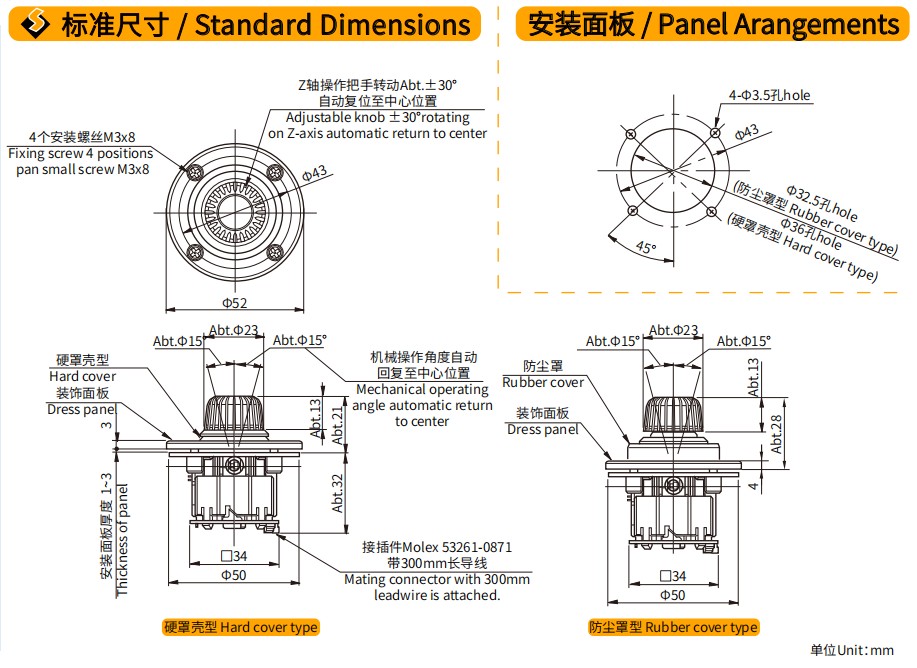

Other Mechanical Specifications

Dust proof rubber and sub-panel for mounting
