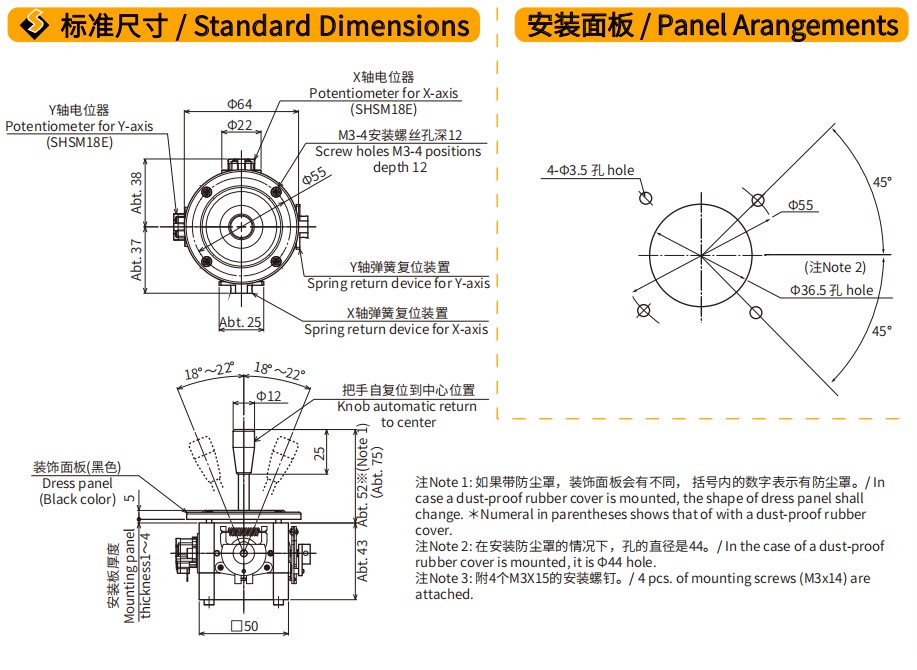

2-dimensional coordinate type joystick
Potentiometer outside-mounted type
Hall effect joystick
Controlling range of operating lever
2-dimensional coordinate type. Omni-directionally approx.±18°～±22°operation from center position.
Operating force
With spring return device with directive feeling. X and Y directions: Approx.0.8～1.5N(80～150gf)
Operating temperature range
-20℃~+65℃
Vibration
10~55HZ，98m/s2
Shock
294m/s2
Mechanical life expectancy
Approx.10,000,000 operations
Mass
2-dimensional coordinate type: Approx.280g
Applied voltage
5VDC±10%
Effective output
0.5V～4.5V
Electrical rotating angle
Approx. ±18°
Independent linearity tolerance
±3%
Load resistance
≥10KΩ
Resolution
Essentially Infinitesimal
Dielectric strength
1 minute at 250V.A.C.
Insulation resistance
≥100MΩ (250V.D.C.)
EMS durability
EMS durability 100V/m(80MHz ～ 1GHz 1KHz sine-wave 80%AM modulation)
ESD durability
ESD durability ±8KV contact ±15KV aerial discharge (Based on IEC61000-4-2)
Other Mechanical Specifications
Dust proof rubber, sub-panel for mounting, special knobs shapes and detent mechanism
Other Electrical Specifications
Micro switch, center position detecting switch and switch incorporated inside knob
