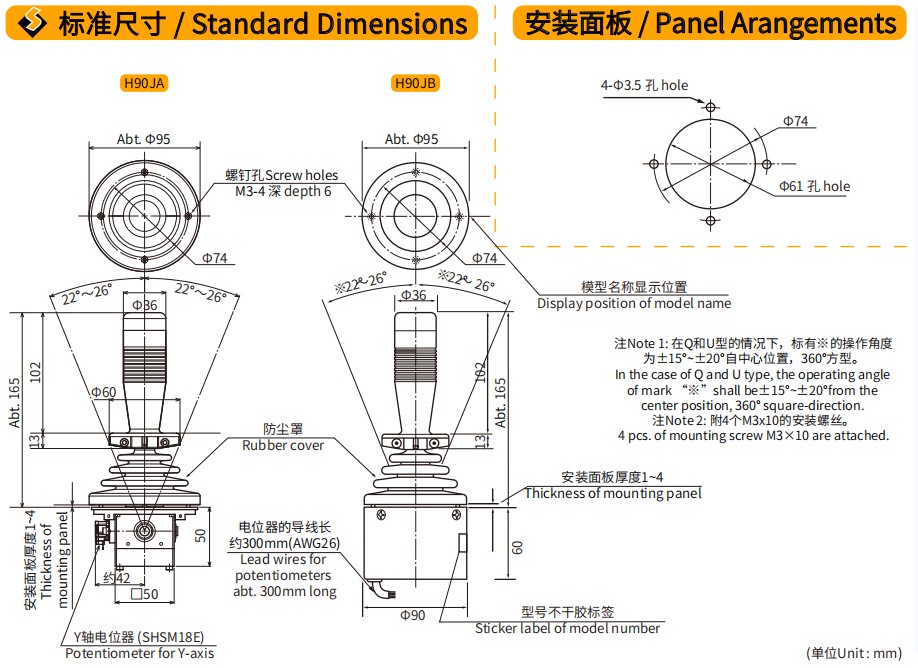

Controlling range of operating lever

2-dimensional coordinate type: Omni-directionally approx.±22°～±26°operation from center position. 3-dimensional coordinate type: Approx.±45°～50°operation from center position of knob in addition to the operating range of 2-dimensional coordinate type.

Operating force

Standard spring return device : Automatically return to center (Omni-directional type), X and Y directions:

Operating temperature range

Approx.2 ～ 12N(200 ～ 1200gf), Z direction: Approx.20 ～ 85mN・m(200 ～ 850gf・cm)

Vibration

-20℃~+65℃

Shock

10~55HZ，98m/s2

Mechanical life expectancy

294m/s2

Mass

Approx.10,000,000 operations

Applied voltage

5VDC±10%

Effective output

0.5V~4.5V

Electrical rotating angle

X and Ydirections： Approx.±22°, Z directions: Approx.±45°

Independent linearity tolerance

±3%

Load resistance

≥10KΩ

Dielectric strength

1 minute at 250V.A.C.

Insulation resistance

≥100MΩ（250V.D.C）

EMS durability

100V/m(80MHz～1GHz 1KHz sine-wave 80%AM modulation)

ESD durability

±8KV contact ±15KV aerial discharge (Based on IEC61000-4-2)

Other Mechanical Specifications

Sub-panel for mounting, special knobs shapes and detent mechanism (only for H90JA)

Other Electrical Specifications

Micro switch, center position detecting switch, switch incorporated inside knob and rocker switch incorporated inside knob
