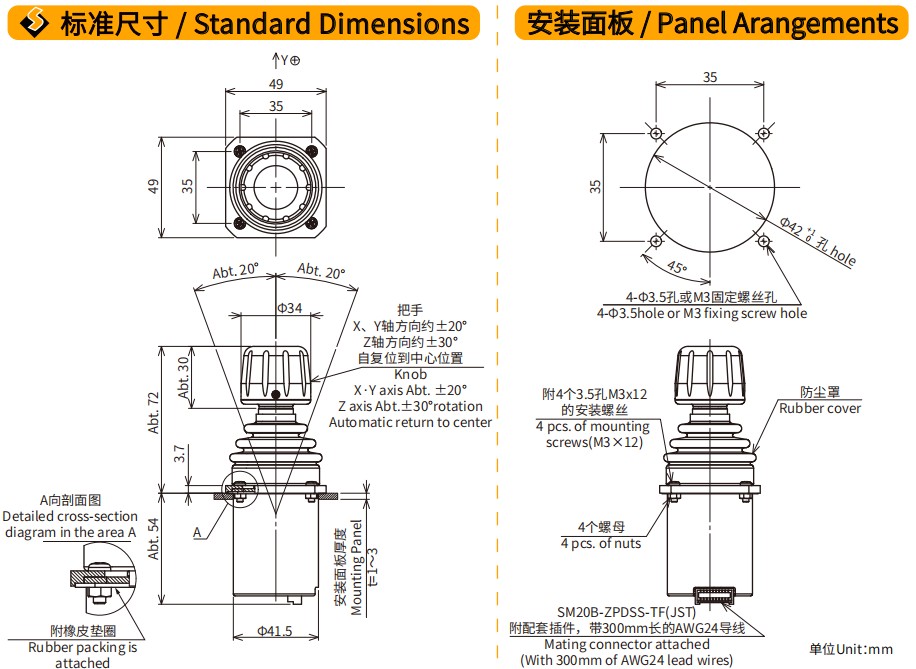

Controlling range of operating lever

3-dimensional coordinate type. X and Y directions: Approx. ±20°from center position. Z direction: Approx. ±30° from center position.

Operating force

Standard spring return device (Automatically return

Operating temperature range

to center), X and Y directions: Approx. 1 〜4N (100 〜400gf), Z direction: Approx. 40 〜 80mN･m (400 〜800gf･cm)

Vibration

-20℃～+60℃

Shock

10～55Hz 98 m/S2

Mechanical life expectancy

294 m/S2

Mass

Approx. 5,000,000 operations for X and Y directions, Approx. 3,000,000 operations for Z direction.

Applied voltage

5V.D.C.±10%

Effective output

Open drain output, absolute maximum ratings 50VD.C., maximum sink current 20mA for each bit output, capacitive load within 1nF for each bit output, current consumption within 54mA

Electrical rotating angle

X、Y directions： Approx. ±20°, Z direction：Approx. ±30°"

Output temperature characteristics

≤0.8° ( Converted into operating angle)

Dielectric strength

1 min（500V.A.C.）

Insulation resistance

≥1000MΩ（500V.D.C.） 100V/m (80MHz~6GHz Based on ISO11452-1~-3)

EMS durability

±8KV contact ±15KV aerial discharge (Based on IEC61000-4-2)

ESD durability

Other Mechanical Specifications

Dust proof rubber and sub-panel for mounting

Other Electrical Specifications

Switch incorporated inside knob
