PHS5
PHS5

PHS5

Magnetic-type Pedals

浏览量: Time: 2023-10-16

    Characteristics:

  • Hall effect IC type

  • Suspended pedal

  • Single or double full redundant outputs

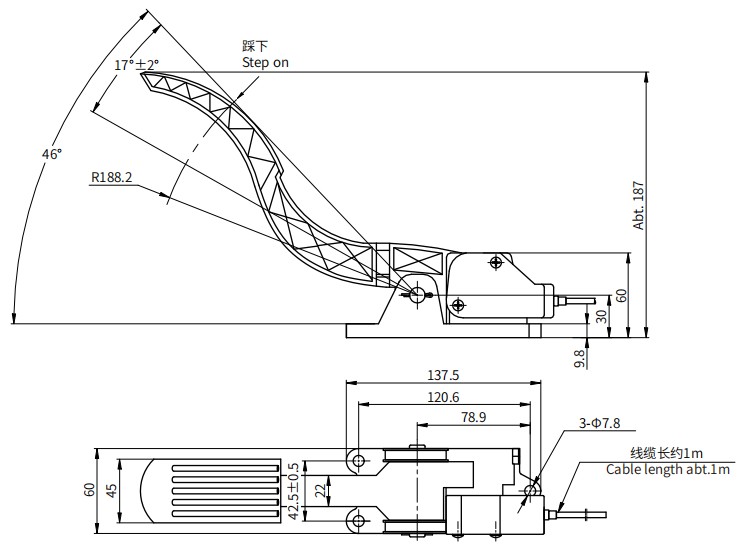

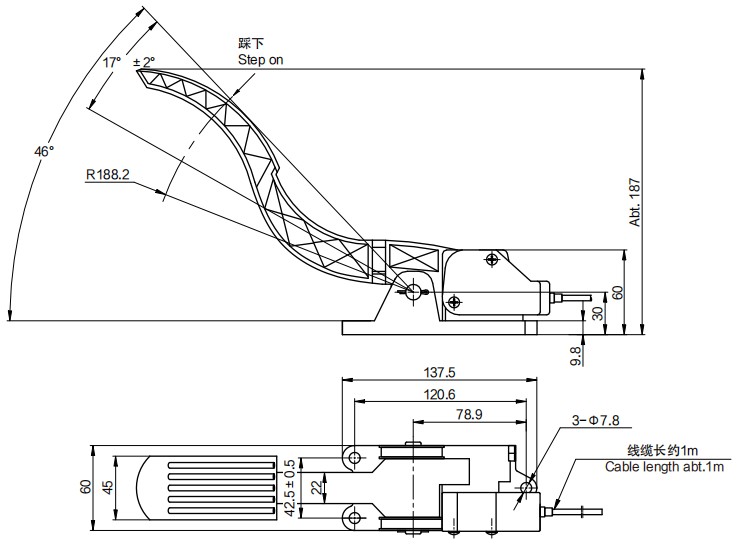

Dimension


Parameter

General Specifications

Operating angle

Approx. 17°

Operating force

14~25N

Mechanical life expectancy

1,000,000 operations

Operating temperature

-40℃~+85℃

Storage temperature

-40℃~+105℃

Vibration

10~55Hz 98m/s²

Shock

294m/s²

Mass

Approx. 1100g

Protection degree

IP67(Electrical parts)

Electrical Specifications (Hall Effect Potentiometer)

Electrical Specifications

R; R2; R3; R4

Applied voltage

5V±10%; 9V~30V; 15V~30V; 15V~30V

Output Signal

0~5V; 0~5V; 0~10V ; 4~20mA

Current consumption (no-load)

<16mA; <25mA; <25mA; <35mA

Output deviation at both ends

<1%.VCC; <50mV; <50mV; <0.1mA

Load resistance

>100KΩ; >100KΩ; >100KΩ; <600Ω

Independent linearity tolerance

±2%

Resolution

4096 (12 Bit)

Update rate

0.3ms

Insulation resistance

>1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Electrical Specifications (Switch)

Rating

2A/30V.D.C., 0.5A/125V.A.C.

Electrical life expectancy

>100,000

Mechanical life expectancy

>100,000,000

Terminal Connection Instructions

Port

1; 2; 3; 4; 5; 6

Title

SW-; Null; SW+; OUT1; GND1; VCC1

Special Specifications Available

Other output signals

PWM, SSI, RS485, CANopen, etc.
