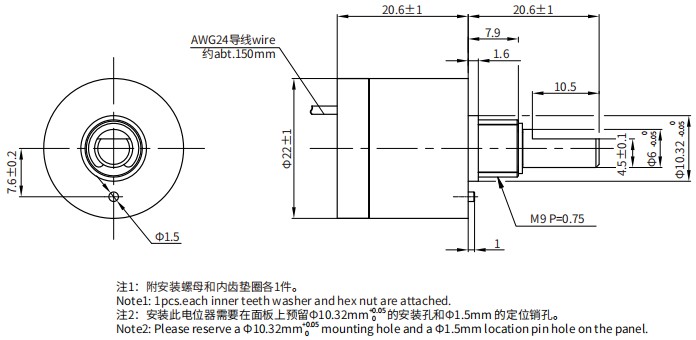

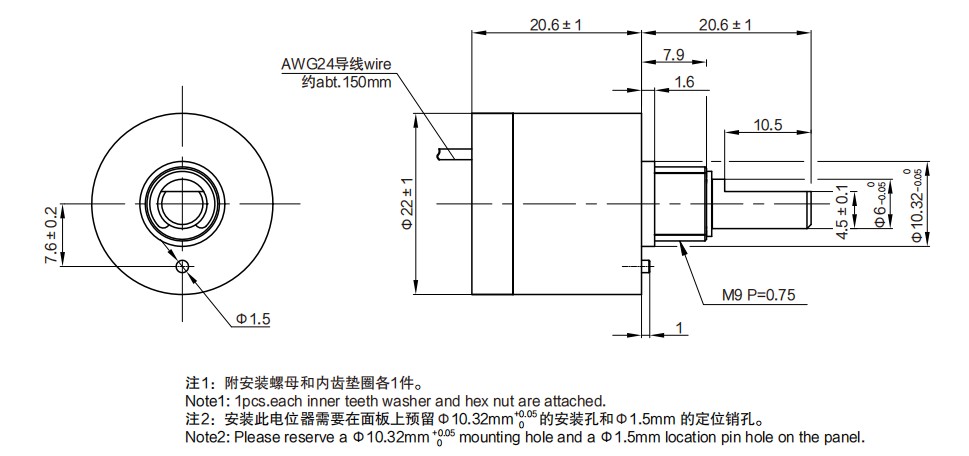

Mechanical angle

360º(Endless)

Protection degree

IP65

Operating torque

<5mN·m

Life expectancy

20,000,000

Mass

Approx.32g

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

Operating temperature range

-30℃～+125℃

Storage temperature range

-30℃～+125℃

ESD durability

Contact discharge ±8KV，Aerial discharge ±15KV，EN61000-4-2:2009

EMS durability

10V/m (80MHz～1GHz，1KHz80% Amplitude modulation)，EN61000-4-3:2006+A1:2010

Standard model

R22M 0505 W3800（For more input voltage/output signal such as 2410、2405, please check our catalog.）

Input voltage

5V±10%

Output signal

0～100%Vcc

Current consumption (no-load)

<16mA

Output deviation of both ends

<1%·VCC

Load resistance

>10KΩ

Effective electrical angle

3800º

Independent linearity tolerance

±0.5%

Resolution

4096(12 Bit)

Update rate

0.3ms

Insulation resistance

> 1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

0505

5V±10% / 0～100%Vcc

2410

15～30V / 0～10V

2405

9～30V / 0～5V

Special analog signals

2442：15～30V applied, 4～20mA output, 1010：10V applied, 0～10V output, 0305：3.3V applied, 0～5V output, Dual analog signal and PWM

Other output signals

SER, SPI

Special shaft

Special length of shaft, special diameter or special machining on shaft (like shaft slotted、fatted etc.)
