Multi-turn Contactless Magnetic POT.

浏览量: Time: 2023-01-09

    Characteristics:

  • Absolute multi-turn version:30/60 turns

  • Magnetic rotary sensor (Hall effect)

  • High resolution

  • Zero point setting at any position

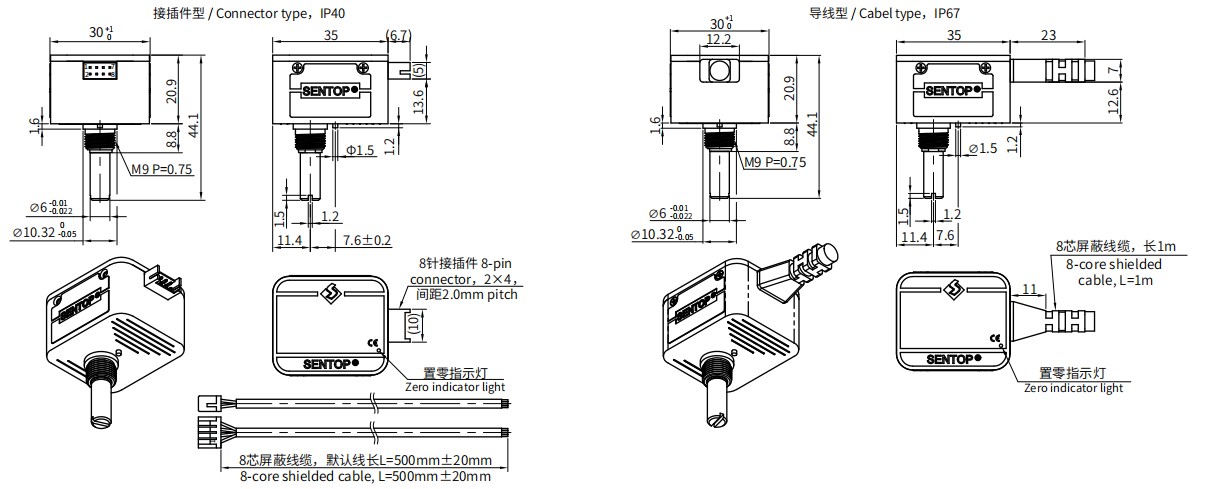

Dimension


Parameter

General Mechanical Specifications

Mechanical angle

360º(Endless)

Protection degree

IP40

Operating torque

<5mN·m

Life expectancy

50,000,000

Mass

Approx.65g

Housing material

Zinc alloy

Shaft material

Stainless steel

Connection

8pin connector 2mm 2x4P

Environmental Specifications

Operating temperature range

-30℃~+85℃

Storage temperature range

-30℃~+85℃

ESD durability

Contact discharge ±8KV,Aerial discharge ±15KV,EN61000-4-2:2009

EMS durability

10V/m (80MHz~1GHz,1KHz80% Amplitude modulation),EN61000-4-3:2006+A1:2010

General Electrical Specifications

Standard model

R30M 2410 W10800

Input voltage

15~30V

Output signal

0~10V

Current consumption (no-load)

<60mA

Output deviation of both ends

<50mV

Load resistance

>100KΩ

Effective electrical angle

10800º

Independent linearity tolerance

±0.3%

Resolution

4096(12 Bit), 16384(14bit) as optional

Update rate

10μs

Insulation resistance

> 1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Special Specifications Available

Special analog signals

0505:5V applied, ~5V output, 2405:9~30V applied, 0~5V output, 1010:10V applied, 0~10V output, 0305:3.3V applied, 0~5V output, PWM

Other output signals

If you need the product of absolute SSI output or the product of Bus RS485, CAN signal output, please refer to our encoder EAM30A and EBM30A.

Speical cable and connector

Connector with shield cable, shield cable only, sepcial connectors

Special shaft

Special length of shaft, special diameter or special machining on shaft (like shaft slotted、fatted etc.)
