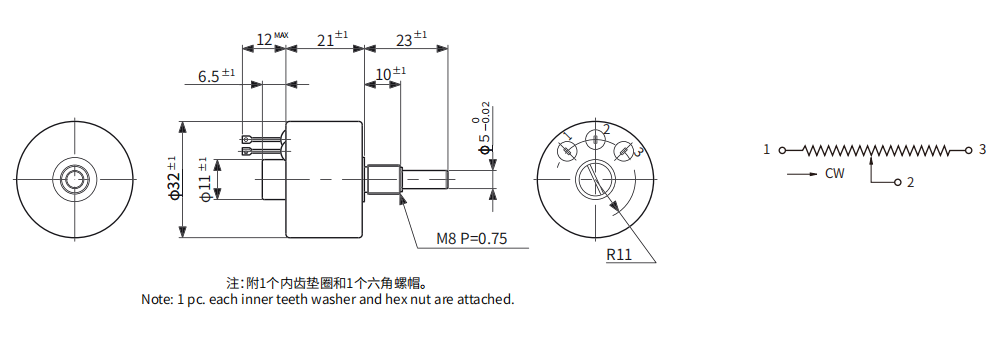

Mechanical travel

360º（Endless）

Protection grade (IP)

IP65

Starting torque

≤30mN·m (300gf·cm)

Rotational life expectancy

25℃, No load at 40 r.p.m. 200,000 shaft revolutions, Total resistance value variation:≤±5％ against initial value, Independent Iinearity tolerance: ≤150％ of specified value, Noise:≤500Ω E.N.R.

Mass

Approx.40g

Operating temperature range

-30℃～+60℃

Temperature cycle

5 cycles under -30℃～+60℃, total resistance value variation: ≤±5％, No mechanical damage.

Exposure at low temperature

24 hours at -30℃, Total resistance value variation: ≤±5％, No mechanical damage.

Exposure at high temperature

1,000 hours at 60℃, Total resistance value variation: ≤±5％, No mechanical damage.

Vibration

10Hz～2000Hz, 98m/s², 12 hours, Total resistance value variation: ≤±5％, No mechanical and electrical damage.

Shock

294m/s², 11ms, 18 times, Total resistance value variation: ≤±1％, No mechanical and electrical damage.

Moisture resistance

40℃, 95％RH, 2000 hours, Total resistance value variation: ≤±10％,Insulation resistance: ≥100MΩ.

Resistance temperature coefficient

±20p.p.m./°C

Standard resistance range

500~10kΩ

Max. practical resistance value

20kΩ

Total resistance tolerance

Standard class ±10%(K)，Precision class ±5%(J)

Independent linearity tolerance

Standard class ±2.0%，Precision class ±0.5%

Electrical travel

280°±5°

Power rating

0.75W

Insulation resistance

≥100MΩ (1000V.D.C.)

Dielectric strength

1 min (1000V.A.C.)

Noise

≤100Ω E.N.R.

Resistance values (Ω)

500；1k；2k；5k；10k；*20k

No. of wire turns

400；500；650；900；1,100；1,500

Resist. wire used

Ni-Cr

Special resistance value

Lower resistance values (50Ω~200Ω )

Special shaft type

Shaft dia. (φ3.175mm) & bushing with inch dimension, special machining on the shaft

Special electrical travel

Special electrical travel

Extra tap

Extra tap (Available up to 1 tap)

With stopper

With stopper (Rotating angle
