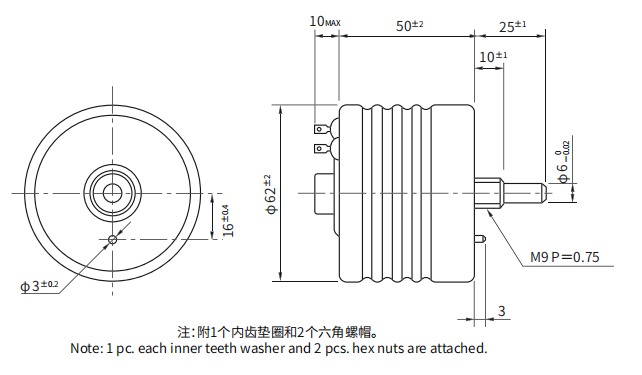

Mechanical travel

300º±5°

Protection grade (IP)

IP65

Starting torque

≤30mN·m (300gf·cm)

Stopper Strength

Approx. 0.9N·m (9kgf·cm)

Rotational life expectancy

25℃, No load at 40 r.p.m. 200,000 shaft revolutions, Total resistance value variation:≤±5％ against initial value, Independent Iinearity tolerance: ≤150％ of specified value, Noise:≤500Ω E.N.R."

Mass

Approx. 300g

Operating temperature range

-30℃～+60℃

Temperature cycle

5 cycles under -30℃～+60℃, total resistance value variation: ≤±5％, No mechanical damage.

Exposure at low temperature

24 hours at -30℃, Total resistance value variation: ≤±5％, No mechanical damage.

Exposure at high temperature

1,000 hours at 60℃, Total resistance value variation: ≤±5％, No mechanical damage.

Vibration

10Hz～2000Hz, 98m/s², 12 hours, Total resistance value variation: ≤±5％, No mechanical and electrical damage.

Shock

294m/s², 11ms, 18 times, Total resistance value variation: ≤±1％, No mechanical and electrical damage.

Moisture resistance

40℃, 95％RH, 2000 hours, Total resistance value variation: ≤±10％,Insulation resistance: ≥100MΩ.

Resistance temperature coefficient

±20p.p.m./°C

Standard resistance range

100~20k(Ω)

Max. practical resistance value

50kΩ

Total resistance tolerance

Standard class ±10%(K)，Precision class ±5%(J)

Independent linearity tolerance

Standard class ±1.0%，Precision class ±0.5%

Electrical travel

280°±5°

Power rating

5.0W

Insulation resistance

≥100MΩ (1000V.D.C.)

Dielectric strength

1 min (1000V.A.C.)

Noise

≤100Ω E.N.R.

Resistance values (Ω)

100；200 ；500；1k；2k；5k；10k；20k；*50k

Special resistance value

Lower resistance values (50Ω)

Special shaft type

Shaft with front and rear extension (Rear shaft with 6mm dia. and 25mm length), shaft dia. (φ6.35mm) & bushing with inch dimension, special machining on the shaft

Special electrical travel

Special electrical travel

Extra tap

Extra tap (Available up to 1 tap)

Multi-ganged

Up to 2 gangs (Please note that mounting method is changed from bushingmount to screw-mounting)

Without stopper

Without stopper (Electrical travel remains 280°± 5°)
