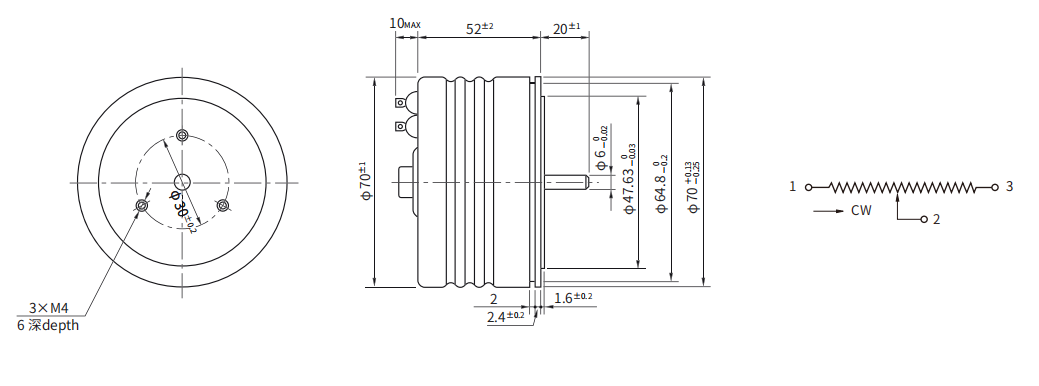

Mechanical travel

360º（Endless）

Protection grade (IP)

IP65

Starting torque

≤30mN·m (300gf·cm)

Rotational life expectancy

25℃, No load at 40 r.p.m. 5,000,000 shaft revolutions, Total resistance value variation:≤±5％ against initial value, Independent Iinearity tolerance: ≤150％ of specified value, Noise:≤500Ω E.N.R.

Mass

Approx. 500g

Operating temperature range

-30℃～+60℃

Temperature cycle

5 cycles under -30℃～+60℃, total resistance value variation: ≤±5％, No mechanical damage.

Exposure at low temperature

24 hours at -30℃, Total resistance value variation: ≤±5％, No mechanical damage.

Exposure at high temperature

1,000 hours at 60℃, Total resistance value variation: ≤±5％, No mechanical damage.

Vibration

10Hz～2000Hz, 98m/s², 12 hours, Total resistance value variation: ≤±5％, No mechanical and electrical damage.

Shock

294m/s², 11ms, 18 times, Total resistance value variation: ≤±1％, No mechanical and electrical damage.

Moisture resistance

40℃, 95％RH, 2000 hours, Total resistance value variation: ≤±10％,Insulation resistance: ≥100MΩ.

Resistance temperature coefficient

±20p.p.m./°C

Standard resistance range

1k~50kΩ

Total resistance tolerance

Standard class ±3%(H)，Precision class ±1%(F)

Independent linearity tolerance

Standard class ±0.5%，Precision class ±0.1% (≤2kΩ: ±0.2%)

Electrical travel

355°±3°

Power rating

1.5W

Insulation resistance

≥100MΩ (1000V.D.C.)

Dielectric strength

1 min (1000V.A.C.)

Noise

≤100Ω E.N.R.

Special resistance values

Lower resistance values (50~500Ω)

Special shaft type

Shaft with front and rear extension (Rear shaft with 6mm dia. and 20mm length), shaft dia. (φ6.35mm) with inch dimension, special machining on the shaft

Special electrical travel

Special electrical travel

Extra tap

Extra tap (Available up to 3 taps)

With stopper

With stopper (Rotating angle is 300°and stopper strength is 0.9N・m [9kgf・cm])
