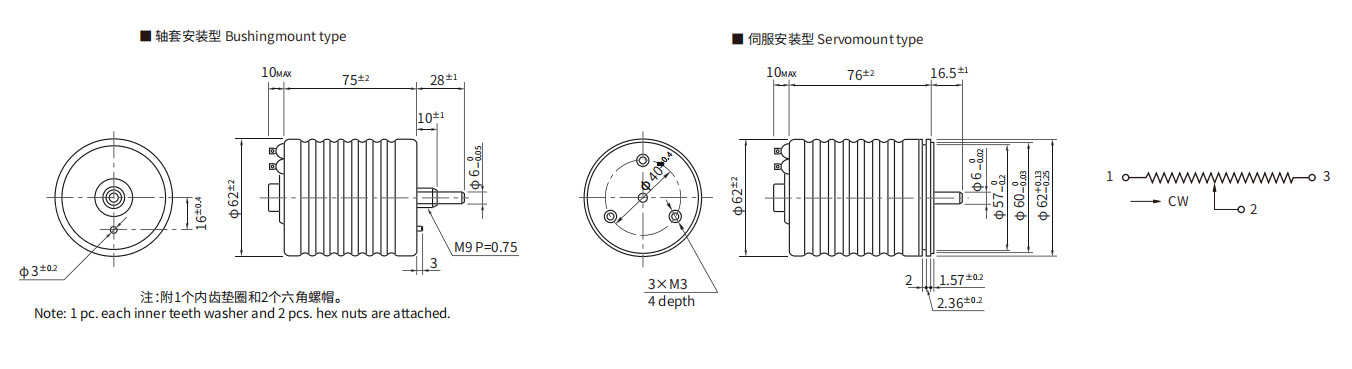

Mechanical travel

3600º

Protection grade (IP)

IP65

Starting torque

≤30mN·m (300gf·cm)

Stopper Strength

Approx. 0.9N·m (9kgf·cm)

Rotational life expectancy

25℃, No load at 40 r.p.m. 2,000,000 shaft revolutions, Total resistance value variation:≤±5％ against initial value, Independent Iinearity tolerance: ≤150％ of specified value, Noise:≤500Ω E.N.R.

Mass

Approx. 290g

Operating temperature range

-30℃～+60℃

Temperature cycle

5 cycles under -30℃～+60℃, total resistance value variation: ≤±5％, No mechanical damage.

Exposure at low temperature

24 hours at -30℃, Total resistance value variation: ≤±5％, No mechanical damage.

Exposure at high temperature

1,000 hours at 60℃, Total resistance value variation: ≤±5％, No mechanical damage.

Vibration

10Hz～2000Hz, 98m/s², 12 hours, Total resistance value variation: ≤±5％, No mechanical and electrical damage.

Shock

294m/s², 11ms, 18 times, Total resistance value variation: ≤±1％, No mechanical and electrical damage.

Moisture resistance

40℃, 95％RH, 2000 hours, Total resistance value variation: ≤±10％,Insulation resistance: ≥100MΩ.

Resistance temperature coefficient

±20p.p.m./°C

Standard resistance range

100~100kΩ

Max. practical resistance value

200kΩ

Total resistance tolerance

Standard class ±3%(H) (≤1kΩ: ±5%(J))，Precision class ±1%(F)

Independent linearity tolerance

Standard class ±0.3%，Precision class ±0.1% (≤5kΩ: ±0.15%)

Electrical travel

3600°±5°

Power rating

5.0W

Insulation resistance

≥100MΩ (1000V.D.C.)

Dielectric strength

1 min (1000V.A.C.)

Noise

≤100ΩE.N.R.

Resistance values (Ω)

100；200；500；1k；2k ；5k ；10k；20k；50k；100k；*200k

No. of wire turns

2,500；3,180；4,350；5,400；6,850；6,660 ；8,550；10,850 ；14,900；18,850；24,390

Resist. wire used

Cu-Ni； Ni-Cr

Speical turns

3-turn, 5-turn (These housing lengths are the same as that of 10-turn type: 75±2mm)

Special shaft type

Shaft with front and rear extension (Rear shaft with 6mm dia. and 28mm length), shaft dia. (φ6.35mm) & bushing with inch dimension, special machining on the shaft

With limit-switches

With limit-switches

Multi-ganged

Up to 2 gangs (Please note that mounting method is changed from bushingmount to screw-mounting)
