Controlling range of operating lever

X and Y directions : Approx.±10°～±15° from center position.(Omni-directionally), Z direction : Approx.±30°～±35° from center position

Operating force

(Standard spring return device Automatically return to center), (Omni-directionally), X and Y directions : Approx.0.8～2N (80～200gf), Z direction : Approx.15～60mN・m (150～600gf.cm)

Operating temperature range

-20℃~+65℃

Vibration

10~55HZ，98m/s2

Shock

294 m/s2

Life expectancy

Approx. 5,000,000 operations

Mass

2-dimensional coordinate type : Approx. 80g, 3-dimensional coordinate type : Approx. 100g

Potentiometers mounted Resistance value

Special conductive plastic resistive element is exclusively used for 30JB series.

Power rating

10kΩ±15%

Electrical rotating angle

X、Y directions：0.1W；Z direction：0.04W

Independent linearity tolerance

X、Y directions：Approx.20°；Z direction：Approx.60°

Output smoothness

±3%

Contact resistance variation

＜against input voltage 0.2%

Resolution

＜6%C.R.V

Dielectric strength

Essentially infinite

Insulation resistance

1 minute at 500V.A.C.

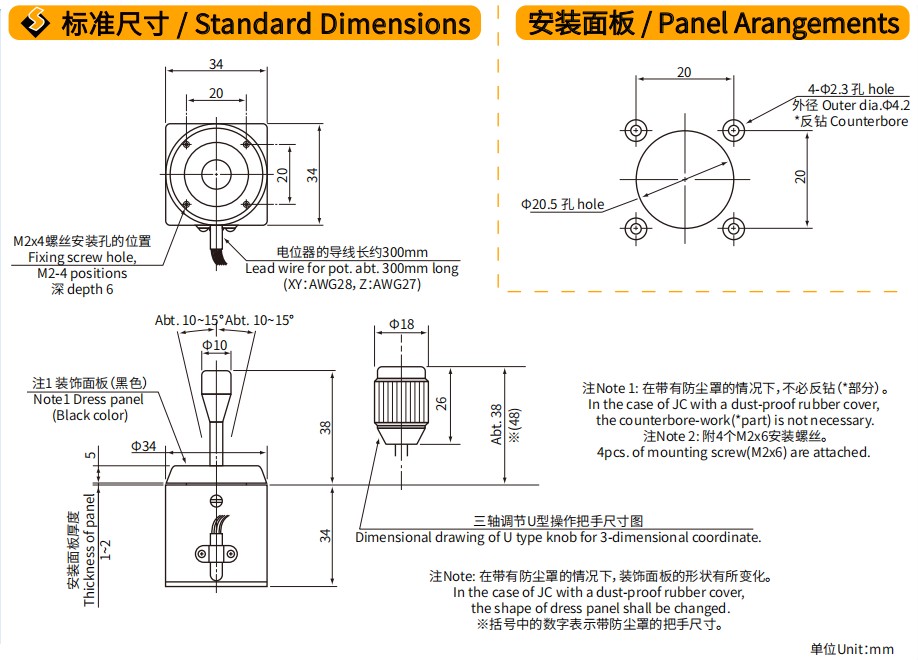

Other Mechanical Specifications

Dust proof rubber, sub-panel for mounting and special knobs shapes are available

Other Electrical Specifications

Alteration of potentiometer's total resistance value and switch incorporated inside knob are available
