Controlling range of operating lever

3-dimensional coordinate type. X and Y directions : Approx.±10°～±15° from center position.(Omni-directionally)，Z direction : Approx.±30°～±35° from center position.

Operating force

(Omni-directionally), X and Y directions : Approx.1～2N (100～200gf), Z direction : Approx.30～70mN・m (300～700gf.cm)

Operating temperature range

-20℃~+60℃

Vibration

10~55HZ，98m/s2

Shock

294m/S2

Life expectancy

Approx.2,000,000 operations

Mass

Approx.130g

Potentiometers mounted

Special conductive plastic resistive element is exclusively used for 30JH series.

10KΩ±20%

Resistance value

X and Y directions ：0.1W, Z direction：0.04W

Power rating

X and Y directions ：Approx.20° , Z direction：Approx.60°

Electrical rotating angle

±5%

Independent linearity tolerance

＜against input voltage 0.2%

Output smoothness

＜6%C.R.V

Contact resistance variation

Essentially infinite

Resolution

1 minute at 500V.A.C.

Dielectric strength

≥1000MΩ（500V.D.C）

Insulation resistance

Other Mechanical Specifications

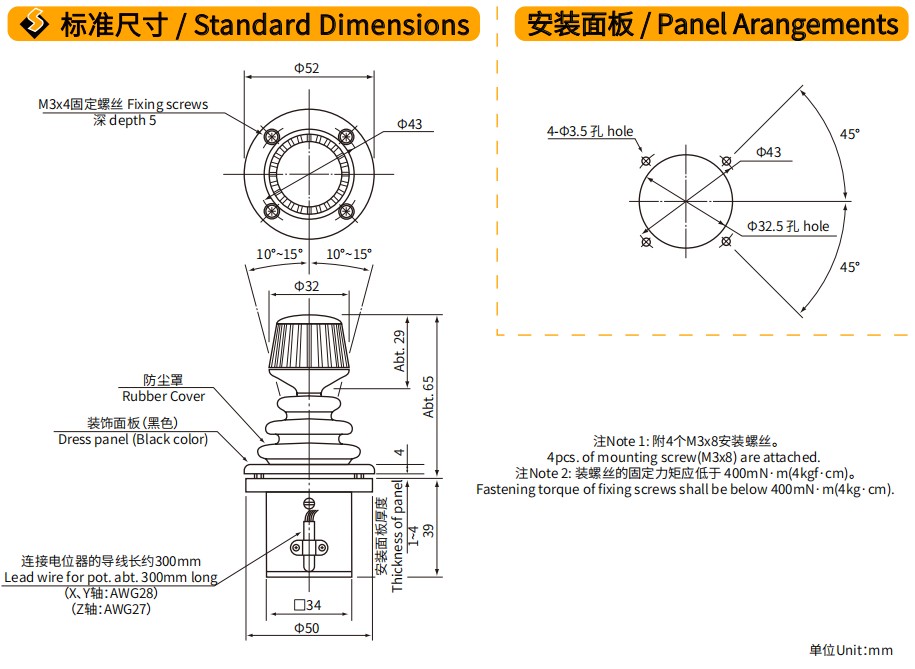

Sub-panel for mounting and special knobs shapes

Other Electrical Specifications

Micro switch, alteration of potentiometer's total resistance value, intermediate tap of potentiometer and center position detecting switch
