3-dimensional coordinate type joystick
Potentiometer outside-mounted type
With conductive plastic element
With spring return device
Multifunctional
Controlling range of operating lever
2-dimensional coordinate type : Omni-directionally approx. ±30°～±35° operation from center position.
Operating force
Standard spring return device : Automatically return to center (omni-directional type), Approx. 3～15N (300～ 1,500gf.)
Operating temperature range
-20℃~+65℃
Vibration
10~55HZ，98m/s2
Shock
294m/S2
Life expectancy
Approx.5,000,000 operations
Mass
Approx.350g
Potentiometers mounted
SFCP22E(Conductive plastic resistive element） All terminals can be fitted with Tyco110 series fasten receptacle (2.8 × 0.5mm) or equivalents）
Resistance value
10KΩ±15%
Power rating
0.2W
Independent linearity tolerance
±3%
Electrical rotating angle
Approx. ±60°
Output smoothness
<Against input voltage 0.2%
Contact resistance variation
<5% C.R.V.
Resolution
Essentially infinite
Dielectric strength
1 min（500V.A.C.）
Insulation resistance
≥1000MΩ（500V.D.C.）

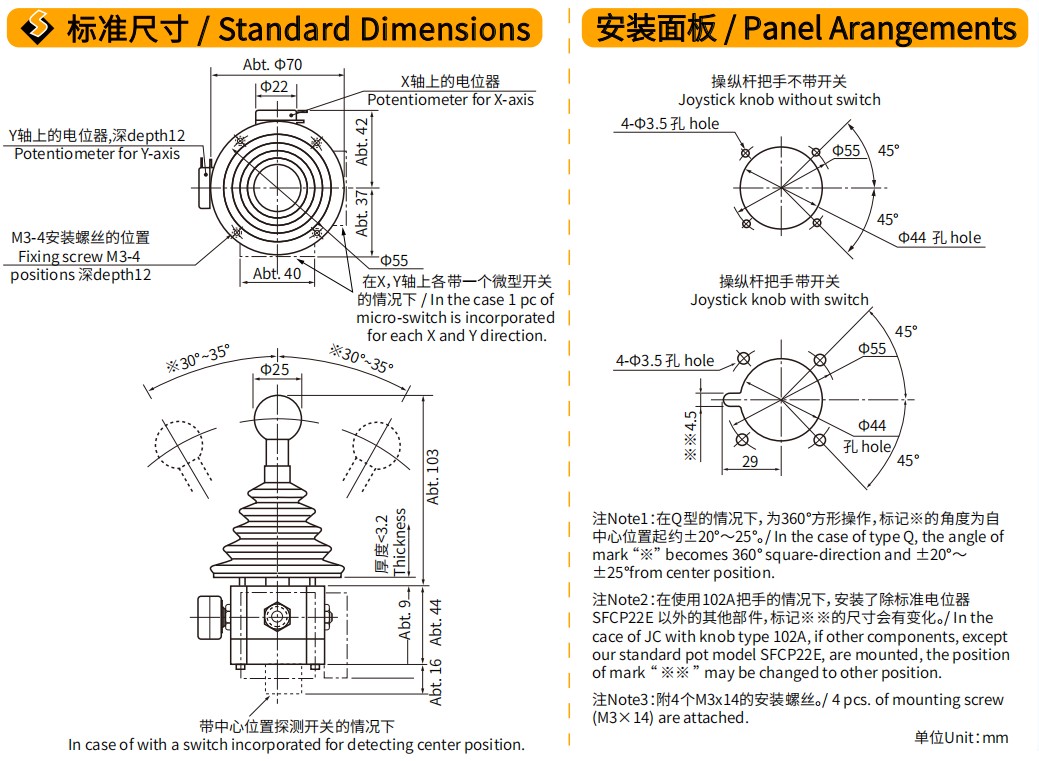

Other Mechanical Specifications
Sub-panel for mounting and special knobs shapes
