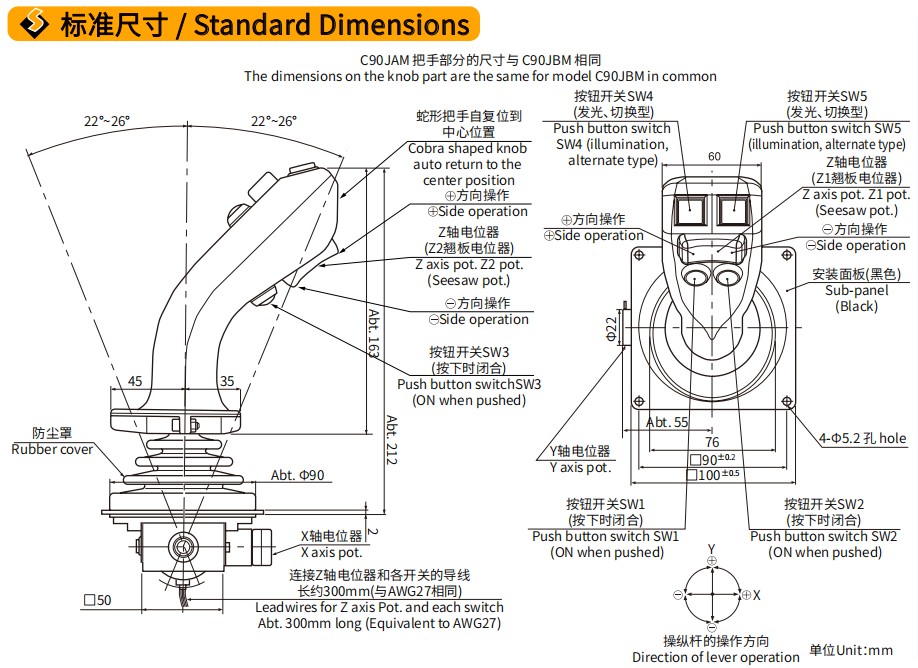

For multi functional control & with cobra head shaped knob
C90JA: Potentiometer outside-mounted
C90JB: Potentiometer incorporated
Potentiometers mounted
C90JA type: SFCP22E outside mounted；C90JB type: Special resistance element is exclusively used for C90JB series
Standard resistance value
10KΩ±15%
Independent linearity tolerance
±3%
Electrical rotating angle
44°±5°
Center return accuracy
50%±1.5%
Power rating
0.2W
Mechanical life expectancy
Approx. 5,000,000 operations
Potentiometers mounted
RMP30AF (Rocker switch unit))
Standard resistance value
10KΩ±15%
Independent linearity tolerance
±3%
Electrical rotating angle
30°±5°
Center return accuracy
50%±3%
Power rating
0.1W
Mechanical life expectancy
Approx. 2,000,000 operations
Operating characteristics
Momentary type (ON when pushed)
Rating
50VDC,0.1A
Dielectric strength
1 minute at 1,000V AC
Insulation resistance
≥1000MΩ（500VDC）
Mechanical life expectancy
Approx. 500,000 operations
Operating characteristics
Alternate type
Rating
30V.D.C. / 5A
Rating for illumination LED
1.85V.D.C. / 20mA
Dielectric strength
1min (1000V.A.C.)
Insulation resistance
≥200MΩ (500V.D.C.)
Mechanical life expectancy
Approx. 10,000
Operating characteristics
Momentary type
Rating
30V.D.C. / 100mA
Dielectric strength
1min (600V.A.C.)
Insulation resistance
≥100MΩ (500V.D.C.)
Mechanical life expectancy
约 Approx. 100,000
