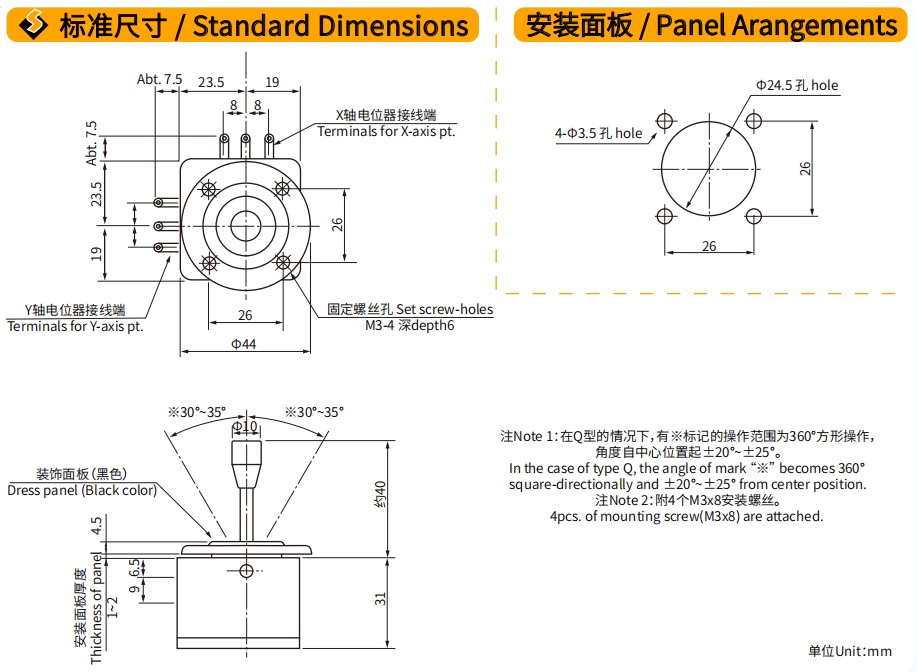

Controlling range of operating lever

2-dimensional coordinate type. Omni-directionally approx. ±30°～±35° from center position.±30°~±35°

Operating force

Standard : Approx. 0.2～0.6N (20～60gf.), High torque type : Approx.0.7～1.5N (70～150gf.), With spring return device (omni-directional type) : Approx. 0.6～3N (60～300gf.)

Operating temperature range

-20℃~+65℃

Vibration

10~55HZ，98m/s2

Shock

294m/S2

Life expectancy

Approx.5,000,000 operations

Mass

Without spring return device : Approx. 160g, With spring return device : Approx. 180g

Potentiometers mounted

Special conductive plastic resistive element is exclusively used for 40JB series . All terminals can be fitted with Tyco110 series fasten receptacle (2.8 × 0.5mm) or equivalents）

Resistance value

10KΩ±15%

Power rating

0.2W

Electrical rotating angle

Approx. 60°

Independent linearity tolerance

±3%

Output smoothness

< Against input voltage 0.2%

Contact resistance variation

<5% C.R.V.

Resolution

Essentially infinite

Dielectric strength

1 min（500V.A.C.）

Insulation resistance

≥1000MΩ（500V.D.C.）

Other Mechanical Specifications

Spring return device, dust proof rubber, sub-panel for mounting and special knobs shapes

Other Electrical Specifications

Alteration of potentiometer's total resistance value, intermediate tap of potentiometer, center position detecting switch and switch incorporated inside knob
