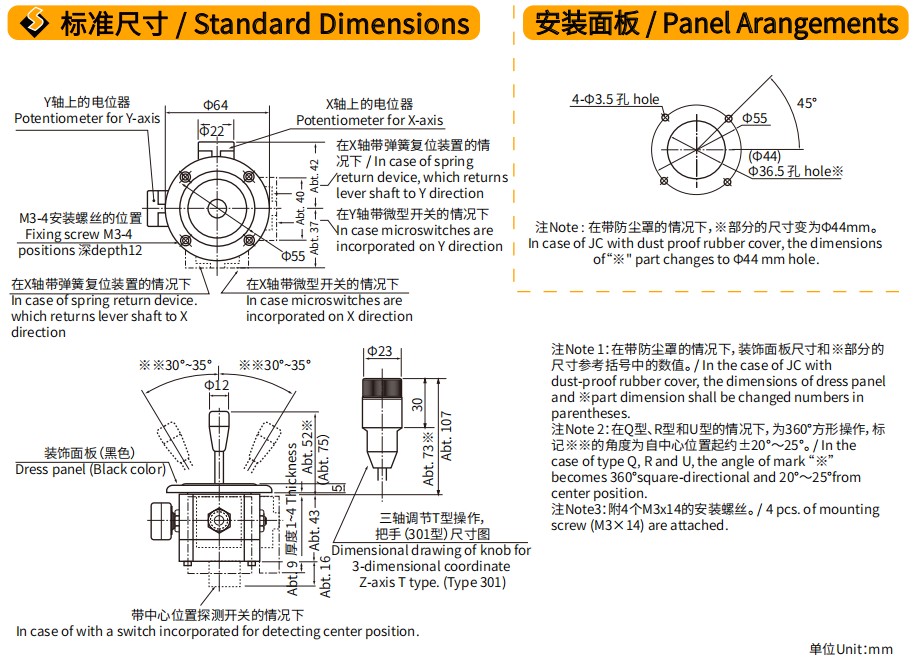

Controlling range of operating lever

2-dimensional coordinate type : Omni-directionally approx.±30°～±35°, operation from center position. 3-dimensional coordinate type : Approx. 320° rotation by knob-operation in addition to the controlling range of 2-dimensional coordinate operation. (in case of center-returning type with spring return device, the operating range is approx. ±45°～±50° from center position.)

Operating force

Without spring return device. Standard : Approx. 0.5～0.8N (50～80gf.), High torque type : Approx. 2～6N (200～600gf.), With spring return device : (subject to directivity), X, Y directions : Approx. 0.8～1.5N (80～150gf), Z direction : Approx. 20～85mN・m (200～850gf・cm)

Operating temperature range

-20℃~+65℃

Vibration

10~55HZ，98m/s2

Shock

294m/S2

Life expectancy

Approx. 5,000,000 operations

Mass

2-dimensional coordinate type : Approx. 280g, 3-dimensional coordinate type : Approx. 230g

Potentiometers mounted

SFCP22E Conductive plastic resistive element， All terminals can be fitted with Tyco110 series fasten receptacle (2.8 × 0.5mm) or equivalents；SFCP12AC Conductive plastic resistive element， In case of 3-dimensional coordinate Z-axis potentiometer inside-knob incorporated type (T-type)

Resistance value

10KΩ±15%

Power rating

0.2W；0.06W

Independent linearity tolerance

±3%

Electrical rotating angle

X、Y directions：Approx. 60°，Z direction： Approx. 320°， in case of spring return type，Z directions：Approx. 90°；Approx. 90°

Output smoothness

< Against input voltage 0.2%

Contact resistance variation

<5% C.R.V.

Resolution

Essentially infinite 1 min（500V.A.C.）

Dielectric strength

≥1000MΩ（500V.D.C.）

Insulation resistance

Other Mechanical Specifications

Spring return device, dust proof rubber, sub-panel for mounting, potentiometer's "0" position adjusting mechanism, special knobs shapes and detent mechanism

Other Electrical Specifications

Micro switch, alteration of potentiometer's total resistance value, intermediate tap of potentiometer, center position detecting switch and switch incorporated inside knob
