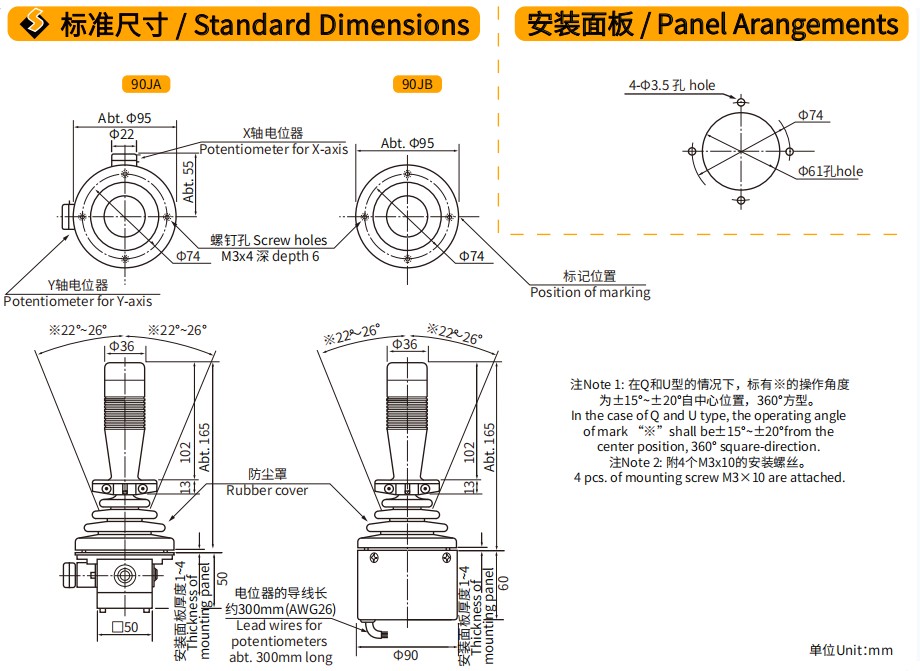

Controlling range of operating lever

2-dimensional coordinate type : Approx. ±22°～±26° omni-direction from center position. 3-dimensional coordinate type : Approx. ±45°～±50°Rotation by knob-operation in addition to the controlling range of 2-dimensional coordinate operation

Operating force

Standard spring return device : Automatically return to center. X, Y directions : Approx. 2～12N(200～1,200gf) , Z direction : Approx. 20～85mN・m(200～850gf・cm)

Operating temperature range

-20℃~+65℃

Vibration

10~55HZ，98m/s2

Shock

294m/s2

Life expectancy

Approx. 5,000,000 operations

Mass

2-dimensional coordinate type : Approx. 650g, 3-dimensional coordinate type : Approx. 750g

Potentiometers mounted

SFCP22E 90JA type Conductive plastic resistive element；Special conductive plastic resistive element is exclusively used for 90JB series；SFCP22AC In case of 90JA and 90JB with 3-dimensional coordinate Z-axis potentiometer-inside-knob incorporated type, the following potentiometer is used

Resistance value

10KΩ±15%

Power rating

0.2W；0.2W；0.3W

Independent linearity tolerance

±3%

Electrical rotating angle

X、Ydirections：Approx. 44°；X、Ydirections： Approx. 44°；Approx. 90°

Output smoothness

< Against input voltage 0.2%

Contact resistance variation

<5% C.R.V.

Resolution

Essentially infinite

Dielectric strength

1 min（500V.A.C.）

Insulation resistance

≥1000MΩ（500V.D.C.）

Other Mechanical Specifications

Sub-panel for mounting and special knobs shapes. 90JA also available for potentiometer's "0" position adjusting mechanism and detent mechanism

Other Electrical Specifications

Micro switch, alteration of potentiometer's total resistance value, intermediate tap of potentiometer, center position detecting switch, switch incorporated inside knob and rocker switch incorporated inside knob
