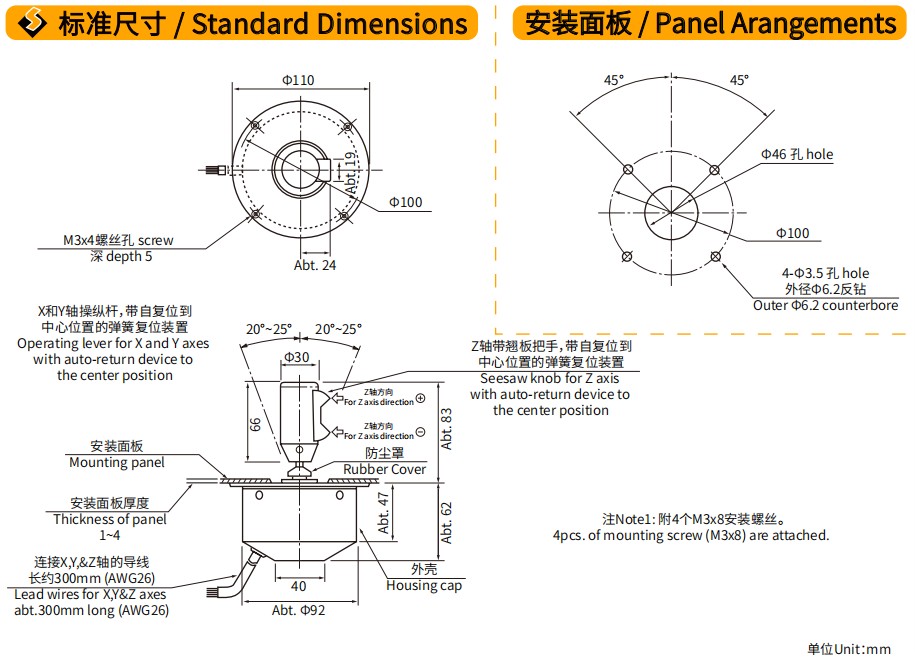

Controlling range of operating lever

2-dimensional coordinate type : Omni-directionally approx. ±20° ～ ±25° operation from center position, 3-dimensional coordinate type : Approx. ±15°～±19° operation from the center position of the seesaw knob, in addition to the controlling range of 2-dimensional coordinate type.

Operating force

With spring return device (standard): automatically return to center，X、Y directions：With 2 springs (with directive feeling) as standard version: Approx. 0.8～2.3N (80～230gf.) Z direction： Approx. 24～30mN·m (240～300gf·cm)

Operating temperature range

-20℃～+65℃

Vibration

10～55Hz 98 m/s2

Shock

294 m/s2

Mechanical life expectancy

X、Y directions：Approx. 5,000,000；Z direction： Approx. 2,000,000"

Mass

3-dimensional coordinate type：Approx. 410g

Potentiometers mounted

SFCP22E, For X and Y axes, conductive plastic resistive element；RMP30AY，For Z axis, special potentiometer RMP30AY is exclusively used for seesaw knob

Resistance value

10KΩ±15%

Power rating

0.13W；0.1W

Independent linearity tolerance

±3%

Electrical rotating angle

Approx. 40°；Approx. 30°

Output smoothness

< Against input voltage 0.2%

Contact resistance variation

<5% C.R.V.

Resolution

Essentially infinite

Dielectric strength

1 min（500V.A.C.）

Insulation resistance

≥1000MΩ（500V.D.C.）

Other Electrical Specifications

Alteration of potentiometer's total resistance value and intermediate tap of potentiometer
