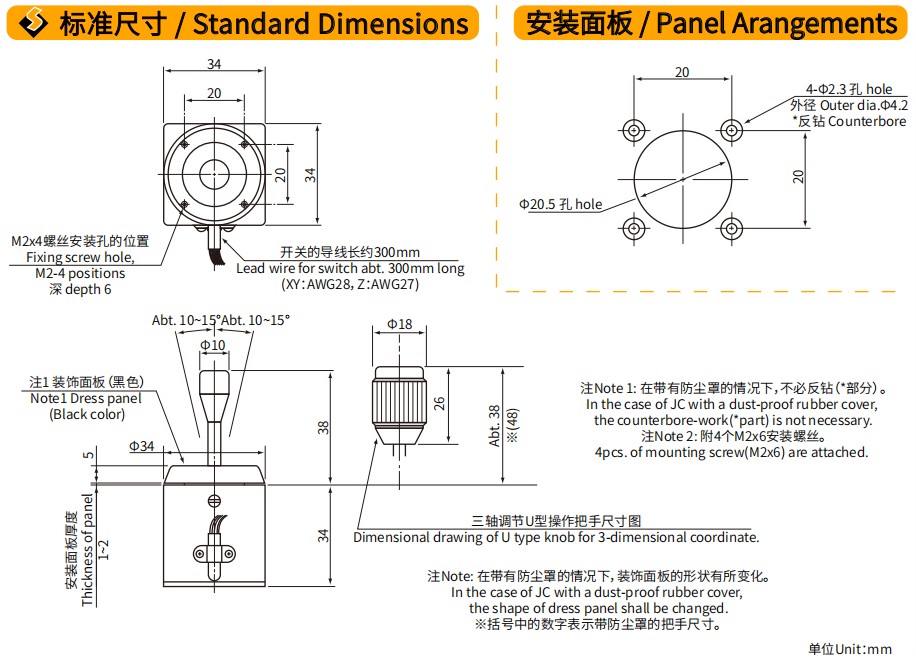

Switch-type Joysticks
With spring return device
Controlling range of operating lever
X and Y directions : Approx.±10°～±15° from center position, Z direction : Approx.±30°～±35° from center position.
Operating force
(Standard spring return device Automatically return to center) X and Y directions : Approx.0.8～2N (80～200gf)， Z direction : Approx.15～60mN・m (150～600gf.cm)
Operating temperature range
-20℃~+65℃
Vibration
10~55HZ，98m/s2
Shock
294m/S2
Life expectancy
Approx.1,000,000 operations
Mass
2-dimensional coordinate type : Approx. 80g, 3-dimensional coordinate type : Approx. 100g
Switches used
(Resistance load) Rating 24V.D.C., 50mA [In case of 3-dimensional coordinate and Z-axis switch-inside-knob incorporated type U, the ratings are 24V.D.C., 100mA.]
Dielectric strength
1 minute at 500V.A. C.
Insulation resistance
＞100MΩ（250V.D.C）
