With the advancement of industrialization, engineering vehicles for various application scenarios have emerged rapidly. Although the purposes of these vehicles vary, their interior supporting facilities share certain commonalities — one example is the armrest console.
The vehicle seat armrest was originally designed to provide arm support for the driver. As the demand for multi-functional integration in industrial vehicle control has grown, the armrest console has come into being. Connected to the vehicle’s central control console, it can be equipped with various sensing and control components to meet the needs of multi-functional intelligent control.
Different vehicles feature armrest consoles of different types and functions according to their application scenarios. As a key control component on the armrest console, how to choose the right joystick has become a top priority.The following aspects should be taken into account:
1. Function adaptability: Respond in a timely manner to effectively meet control requirements;
2. Operation safety: Sturdy structure and stable signal output;
3. Application environment: Capable of operating under various harsh conditions, such as high-frequency operation, shock and vibration, water and dust erosion, etc.;
4. Space layout: Adapt to the vehicle’s space constraints and functional layout requirements.
Based on the needs of different vehicle models, we recommend the following joysticks:
01 Mini Joystick

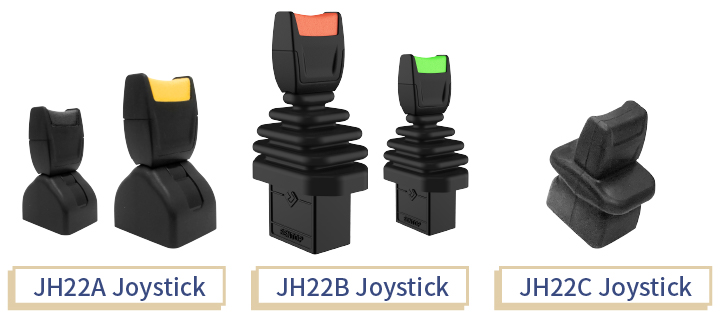

JH22A and JH22B are two popular mini joysticks from SENTOP. They feature compact size and high protection level, with the electrical part reaching IP67. They can be mounted side by side on vehicles, and each joystick can achieve independent control. Different handle colors are used for function distinction, reducing the possibility of misoperation.JH22C is a high-protection upgraded version of the JH22A series, adopting an omni-directional dust cover design. This series of joysticks also supports redundant output, improving system reliability. Customization is available according to requirements, perfectly matching the function configuration and dimension requirements of the armrest console.
02 Medium Joystick

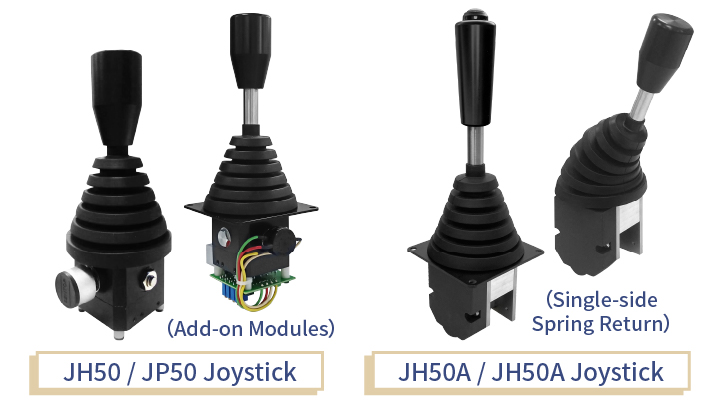

The 50mm-sized joystick is one of SENTOP’s high-performance joystick series.JP50 / JP50A adopts imported potentiometers and an all-metal mechanical structure, which is firm and reliable, ensuring both mechanical and electrical performance.At the same time, it can work with signal conversion modules to support a wide range of output options, including analog signals, digital signals and communication protocol signals.JH50 / JH50A joysticks are equipped with SENTOP contactless potentiometers, featuring multiple optional output signals, strong function expandability and customizability. They have high protection grade, excellent impact resistance, and can be fitted with connectors specified by customers.
All four joysticks are compatible with operating handles of different shapes and can meet various special customization requirements, such as self-locking, multi detents, single-side return, switch installation, etc.With medium size and high integration, they are widely integrated into armrest consoles for the main control of vehicles. They are easy to operate, flexible and precise in control.
03 Large Joystick

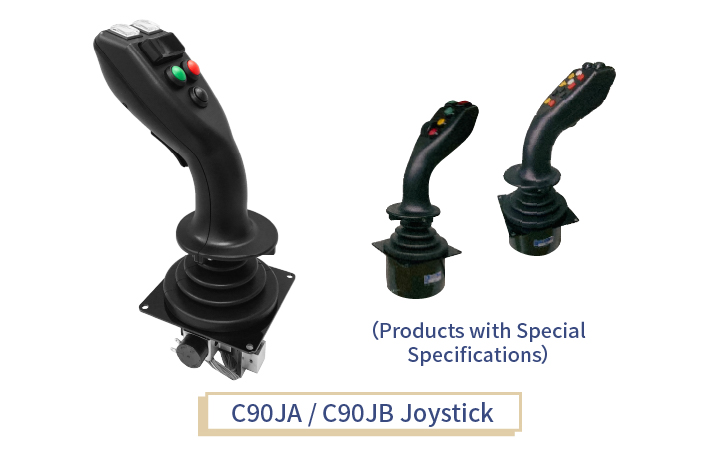

The C90JA / C90JB series are potentiometer-type joysticks. By equipping the joystick body with a cobra knob, they achieve highly integrated control, including multi-axis operation, multiple switches, dead-man switch, and other configurations, featuring a high degree of intelligence.The handle design is highly ergonomic, providing operators with excellent operating comfort while ensuring functional control and safety. They also offer more options for functional integration in vehicle armrest consoles.

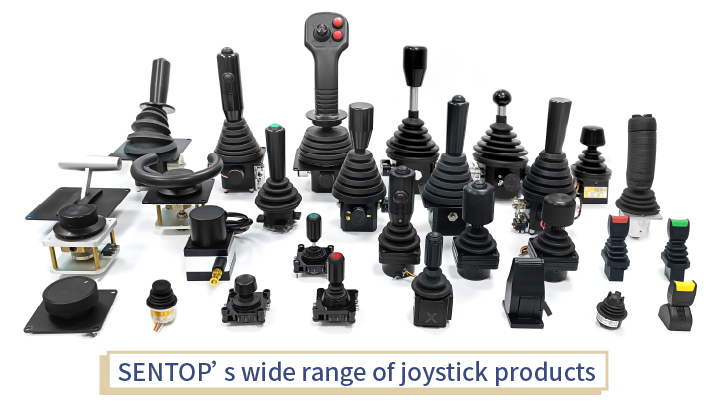

These are the joysticks we’ve introduced for armrest console applications.For vehicle control in various working environments, ensuring functional performance and operational safety are the two basic principles when selecting a joystick.SENTOP joysticks are well recognized in the industry for their diverse functions, various output signals and strong customization capabilities, and have been widely applied to vehicles in many industries.With a wide product range, a professional Research and Development team and years of industry experience, SENTOP can provide you with customized system integration solutions to meet your different needs.
